Attenuator probes for oscilloscopes

Highlights
  • Full integrated autotest
  • Voltage testing up to 69 VAC (16 2/3 Hz - 8 Hz) / 75 VDC
  • Single-pole phase test
  • Phase sequence testing up to 4 Hz
  • Continuity testing
  • Removable test probe and cable
Description

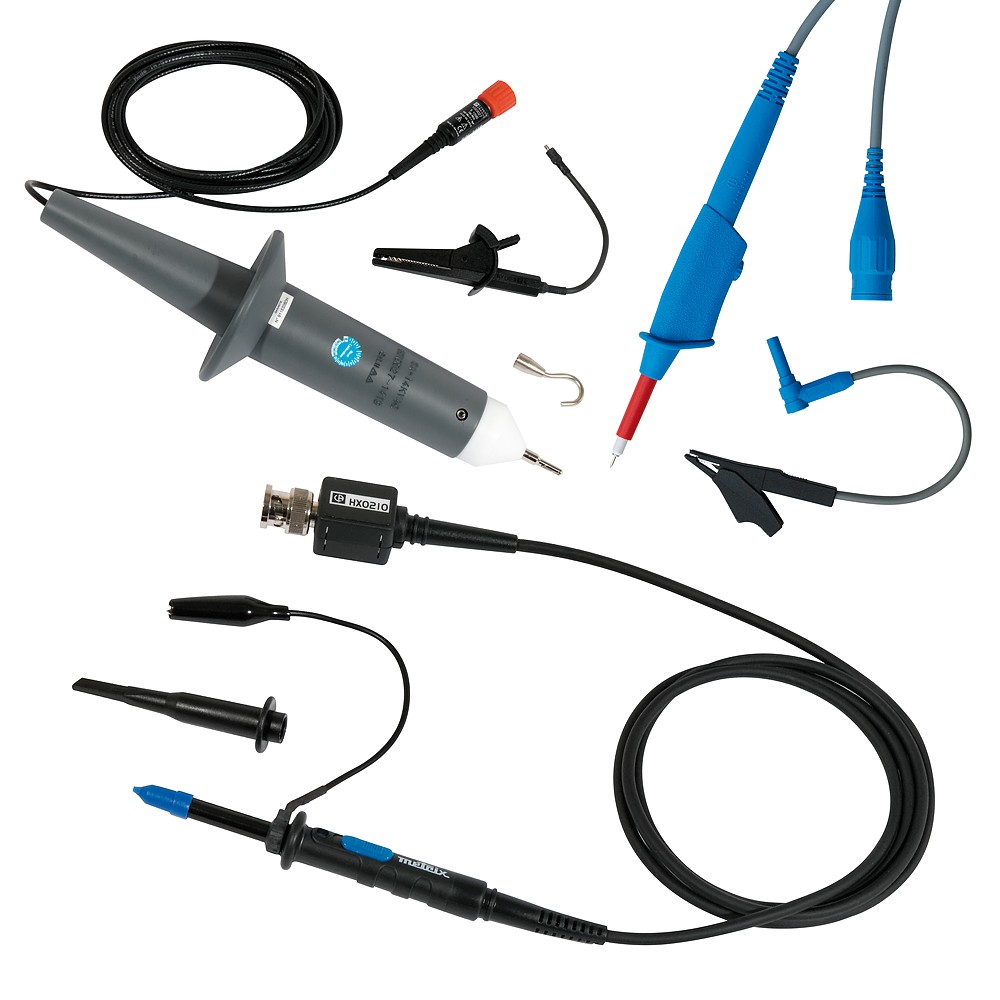

These voltage probes for oscilloscopes attenuate the signal by a factor of 10 or 100 depending on the models, with a bandwidth that varies from 15MHz to 500MHz, to be adapted according to the BNC channels of the oscilloscopes.

IEC6110 safety from 400V Cat II to 1,000V Cat II depending on use.

HX0003   1/10 PROBE 150MHZ 400V
HX0004   1/10 PROBE 250MHZ 1,000V
HX0005   1/10 PROBE 450MHZ 1,000V
HX0006   1/100 PROBE 300MHZ 1kV
HX0027   1/1,000 PROBE 30MHZ 20kV
HX0102   INST-RMS CURRENT PROBE
HX0108   1/10 PROBE 500MHz 600V Cat.III
HX0206   1:1/1:10 PROBE 60MHZ 300V
HX0210   1:1/1:10 PROBE 100MHZ 300V
HX0220   1:1/1:10 PROBE 200MHZ 300V
Designation
Price
Reference
Quantity
Actions
1/10 150MHZ 400V Probe 1/10 150MHZ 400V Probe
-
HX0003
-
1/10 250MHZ 1000V Probe 1/10 250MHZ 1000V Probe
-
HX0004
-
1/10 450MHZ 1000V Probe 1/10 450MHZ 1000V Probe
-
HX0005
-
1/100 300MHZ 1KV Probe 1/100 300MHZ 1KV Probe
-
HX0006
-
Sonde HT Oscilloscope Z 1/1000-20KV-30MHz
-
HX0027
-
INST-RMS Current probe 14AAC-20ADC 60KHZ INST-RMS Current probe 14AAC-20ADC 60KHZ
-
HX0102
-
Sonde Courant INST-RMS K 14AAC-20ADC 60KHZ
-
HX0102-K
-
600V isol. meas. kit for oscilloscope 600V isol. meas. kit for oscilloscope
-
HX0108
-
Oscillo Standard Probe 1:1/1:10-60MHz 300V CATII Oscillo Standard Probe 1:1/1:10-60MHz 300V CATII
-
HX0206
-
Oscillo Standard Probe 1:1/1:10-100MHz300V CATII Oscillo Standard Probe 1:1/1:10-100MHz300V CATII
-
HX0210
-
Oscillo standard probe 1:1/1:10-200MHz300V CATII Oscillo standard probe 1:1/1:10-200MHz300V CATII
-
HX0220
-
