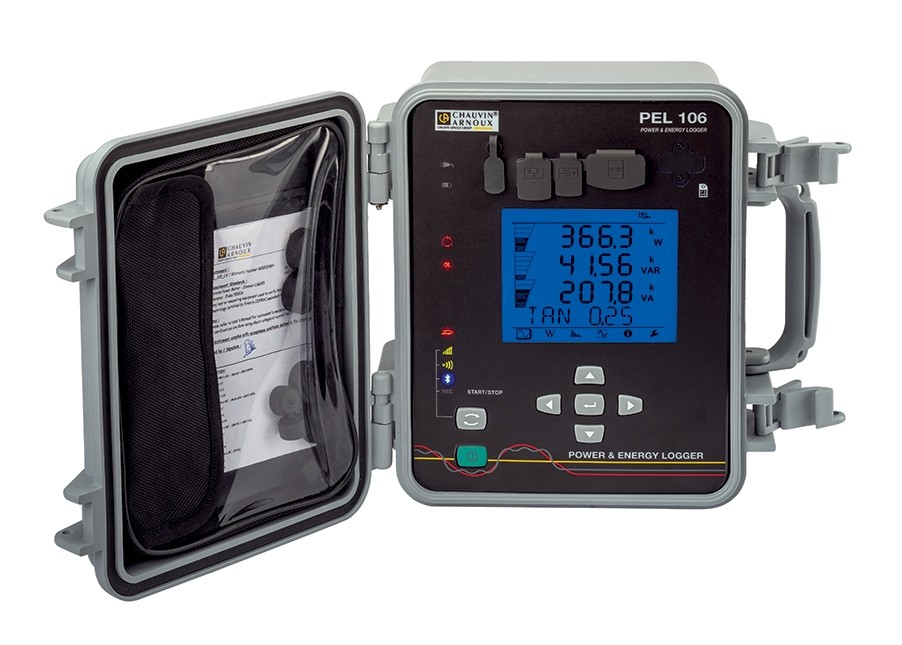

The PEL106 power logger measures and records all the useful data for energy consumption diagnostics. The PEL106 can be used without cutting off the mains power supply.
Rugged thanks to its IP67 all-terrain casing, the PEL106 can be transported anywhere. It is equipped with 4 voltage channels and 4 current channels.
No more battery problems: this logger is self-powered directly via the phase.
The LCD screen with backlighting and a quadruple digital display is particularly easy to read. The PEL 106 is equipped with an SD/SD-HC card for backup of the data from several months or even years.
Suitable for all types of electrical networks, the PEL106 automatically recognizes the sensors connected. It measures voltage up 1,000 VAC/VDC and current up to 10 kAAC / 5 kADC. Its wide measurement ranges enable it to record power values up to 10 GW/Gvar/GVA, and energy up to 4 EWh/EVAh/Evarh.
It is equipped with an Alarm mode. The user can define limits and a list of events is recorded.
When used with remote L452 loggers, the PEL106 can recording external parameters such as the temperature, pressure, engine torque, etc., and thus refine the analysis if you are troubleshooting malfunctions, for example. This function on the PEL106 is ideal for applications involving new energies such as wind (electrical energy linked to the strength of the wind).
The PEL106 is equipped with multiple communication modes: USB, Ethernet, Bluetooth, Wifi and 3G/GPRS. The new 3G/GPRS mode allows users to insert a SIM card in the PEL for remote connection via a GSM. When an alarm is triggered, users can automatically receive an email alert.
When access to the PEL106 is complex due to protective measures on secure IT networks, the measurements can be viewed via an IRD server.
The PEL Transfer software can be used to analyse the data recorded with the PEL100 models. On the basis of the power measurement campaigns performed, the software automatically provides a breakdown of the losses detected.
New: the software directly calculates the cost of the power consumed and gives the result in the local currency selected.
The DATAVIEW software platform can be used to generate reports. Users can set alarm thresholds on the various measurements made in order to obtain a customized measurement report.
Acquisition interval from 200ms
Active, apparent and reactive power values
Phase: cos phi, tan PHI, PF
IP67 closed, IP54 open
