PEL103 POWER-ENERGY LOGGER

  • 1000vcat3
  • Dataview
  • Ethernet
  • IP54
  • SD
  • TRMS
  • USB
  • ANDROID
Description

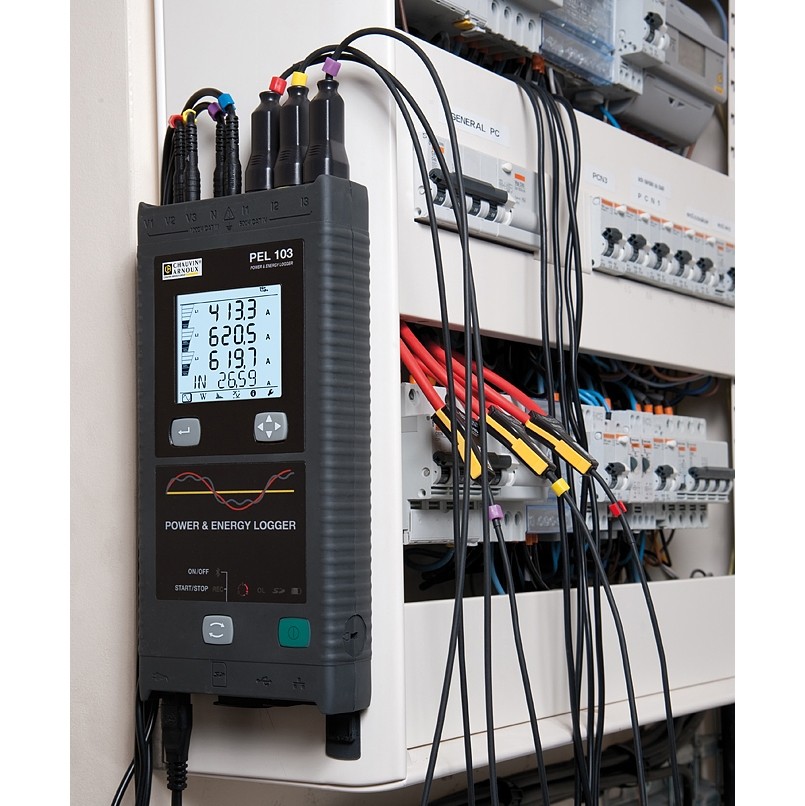

Ergonomic, magnetized and suitable for all types of cabinets, PEL103 loggers provide all the power and energy measurements simultaneously.

  • Single-phase, split-phase and three-phase installations with or without a neutral, as well as other complex configurations.
  • Implementation without cutting off the mains power supply

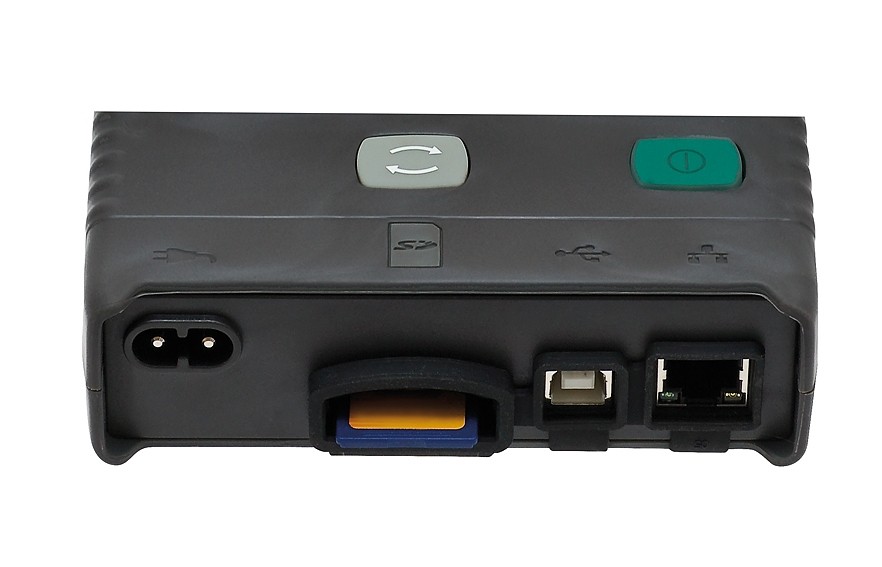

  • BlueTooth, Ethernet and USB communication
  • Automatic recognition of the sensors connected
  • Recording on SD and SD-HC cards

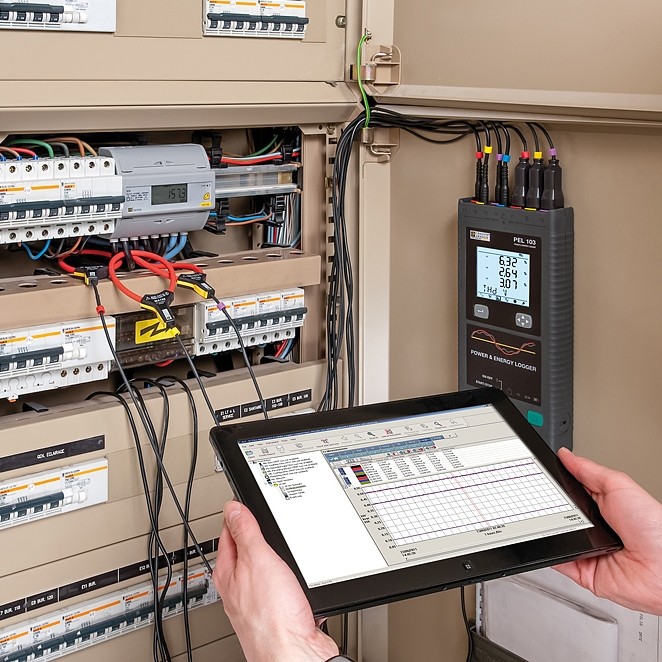

  • Real-time communication with a PC and analysis using PEL Transfer software


Other specifications:

  • Voltage up to 1,000 V
  • Current up to 10,000 A
  • Voltage ratio / current ratio up to 650,000 V / up to 25,000 A
  • Power from 10 W/var/VA to 10 GW/Gvar/GVA
  • Energy up to 4EWh / 4 EVAh / 4 Evarh
  • Phase: cos φ, tan Φ, PF
  • Harmonics up to 50th order
  • 8 GB SD memory card (SD-HC card up to 32 GB)


site PEL100 chauvin Arnoux

To find out more, visit our website dedicated to Chauvin Arnoux's PEL 100 Series of power and energy loggers

Designation
Price
Reference
Quantity
Actions
PEL103 MA193
Accessories
-
P01157151
-
PEL103
Accessories
-
P01157153
-
