The PAC Series is a range of Hall-effect current clamps for measuring direct and alternating currents.
2 forms are proposed to clamp cables up to 39 mm or 2x25.4 mm in diameter, as well as small busbars.
The range comprises PAC1x models and PAC2x models for higher currents.
This clamp has 2 sensitivities for better measurement resolution and accuracy, a simplified ZeroDC adjustment system and a deactivatable automatic standby function.

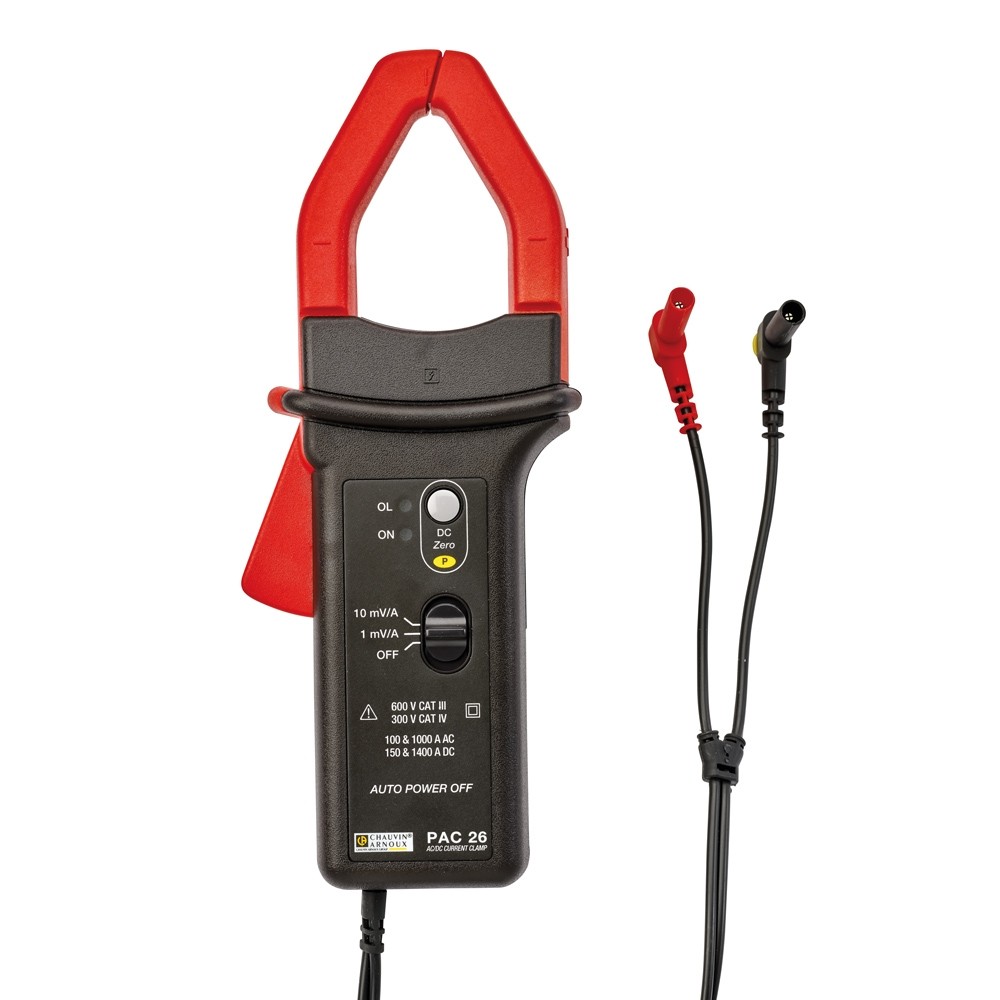

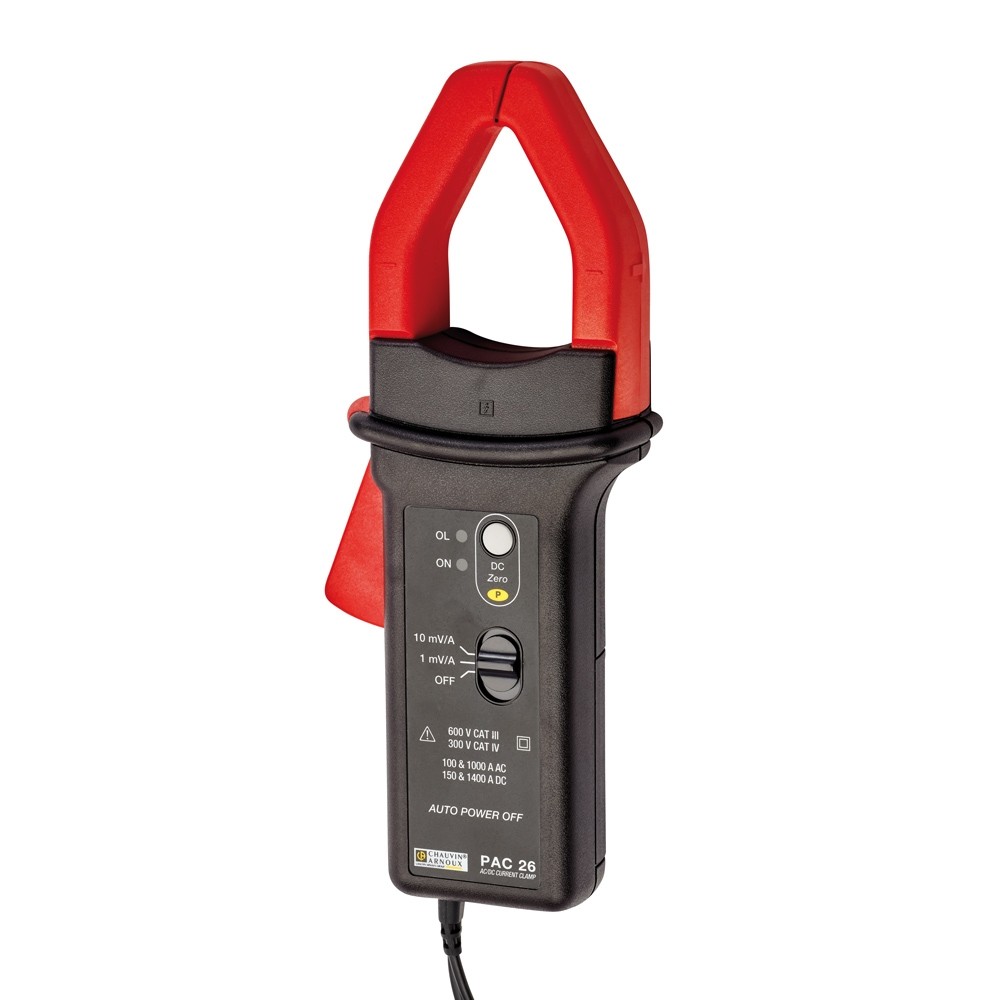

Main features of the PAC26 model:
- Rated current: 100 AAC/150 ADC - 1,000 AAC/1,400 ADC
- Output signal: DC and AC voltage
- Output / input ratio: 10 mV / A, 1 mV / A
- Output via lead and isolated Ø 4 mm male plugs
