OX5042 dig. oscilloscope 2chan. 40 MHz

Technical datasheet
References
Support

Highlights

Optimized 3.5” colour LCD screen for maximum visibility
Multilingual interactive online help
Data recording and recovery on PC
Practical with its USB communication using the SCPI protocol
Stand-alone, powered by NiMH rechargeable battery with USB charger

Description

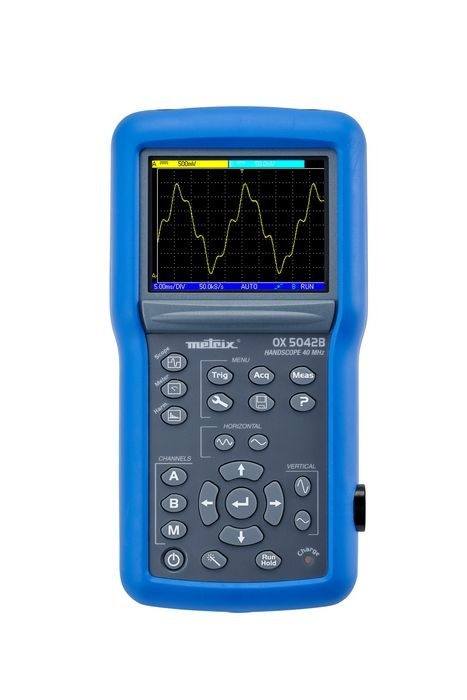

The shockproof, HANDSCOPE OX 5042B oscilloscope fits comfortably in one hand.
This ergonomic instrument is also equipped with a TFT colour screen and LED backlighting for precise data display. To make it simpler to use, intuitive pictograms and integrated multilingual help are available at all times.

The HANDSCOPE combines three measuring instruments in 1 on 2 channels:
- 40 MHz oscilloscope with 2 totally-isolated 600 V CAT III channels – 40 MHz bandwidth – 2 GS/s - 5 mV to 200 V/div and 25 ns to 200 s/div
- Independent 8,000-count multimeter with power measurements,
- Built-in 31-order harmonic analyser (fundamental between 40 and 450 Hz)

2 MB are available for recording data and, in multimeter mode, it is possible to store graphic recordings of 2,700 measurements (5 min to 1 month).
Isolated USB communication with the SCPI protocol is available. This makes it simple to program the instrument remotely with the SX-METRO software.

These products have been developed using an Eco-Design approach to reduce their environmental impact. They come with a 3-year warranty.

References

Designation

Price

Reference

Quantity

Actions

Oscilloscope portable 2X40MHZ voies isol

Accessories

OX5042B

Quotation

Magnetized voltage probes Diam. 6.6-CF4

P01103058Z

Quotation

CMS Clamp Banana Lead

HX0064

Quotation

600V isol. meas. kit for oscilloscope

HX0108

Quotation

MTX328x battery charger

HX0053

Quotation

USB Optical cable

HX0056-Z

Quotation

V1.2 Data Acquisition Software for ASYC II Mult

SX-DMM2

Quotation

HX0051B Batt Kit for Graphic MTX329X DMM

HX0051B

Quotation

USB Power + Jack cable Handscope

P01103080

Quotation

PWM kit HANDSCOPE MLI01 Filter E27N Clamp

P01102188

Quotation

Support

Informations produit

* Product

* Quantity

Informations utilisateur

Title
* Name

* Firstname
Company
* Email
Phone

Mobile-Phone

Adresse

* Address
Address 2
* Postal Code

* City
* Country
By clicking, you accept to be contacted by Chauvin Arnoux. Please note that your details may be sent to one of our subsidiaries, including in countries outside the European Union.
For further information, please see our policy on confidentiality.

* Required Fields

lv_handscope.zip	Date de mise à jour : 30/10/2012 Langue : Anglais Version : V1.0
cvi_handscope.zip	Date de mise à jour : 30/10/2012 Langue : Anglais Version : V1.0

instructions_1.pdf	Update: 03/11/2019 Language: Multilingual Version : V3.1
loaderscope-v3.1.zip	Update: 03/11/2019 Language: Multilingual Version : V3.1

sxmetro_v6.2.zip	Updated : 07/2021 Language : Multilingual Version : v6.2
sx.metro-v6.3.zip	Updated : 03/2022 Language : Multilingual Version : v6.3

cp210x_universal_windows_driver.zip	USB drivers for Windows 10/11
cp210x_windows_drivers_v6.7.3.zip	USB drivers pour Windows 7/8/8.1
cp210x_universal_windows_driver_releasenotes.txt
x02011s00_sxdmm_v3.6.zip	Updated : 10/2024 Language : Multilingual Version : V3.6
