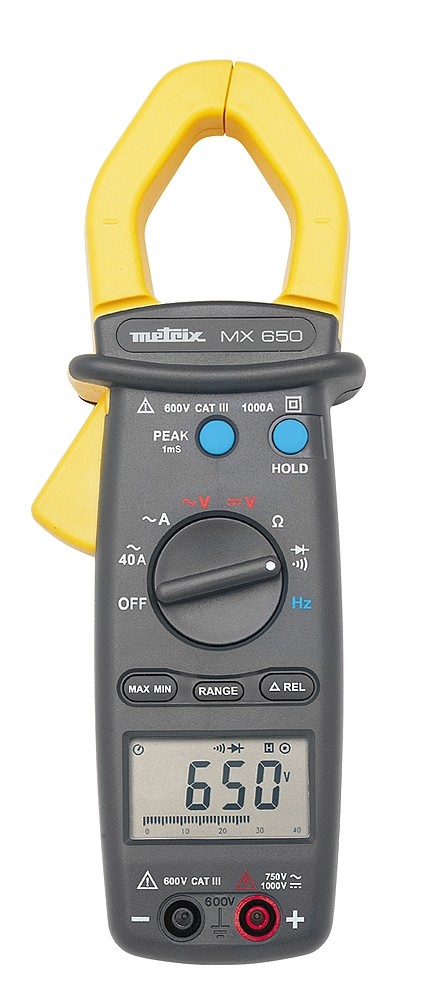

The MX 650 clamp combines the functions of an AC/DC multimeter and an AC current clamp up to 1,000 A.
It is extremely easy to grip with a highly readable display.
- 4,000-count display
- 42-segment bargraph
- Clamping diameter: 40 mm
- AC current: 0.05 A to 1,000 A
- AC voltage: 0.5 V to 750 V
- DC voltage: 0.2 V to 1,000 V
- Resistance: 0.2 Ω to 4 kΩ
- Frequency: 10 Hz to 4 kHz (A) / 10 kHz (V)
- Audible continuity test & diode test
- Safety: EN 61010 CAT III 600 V
- PEAK (capture of 1ms signals)
- REL (relative measurements)
