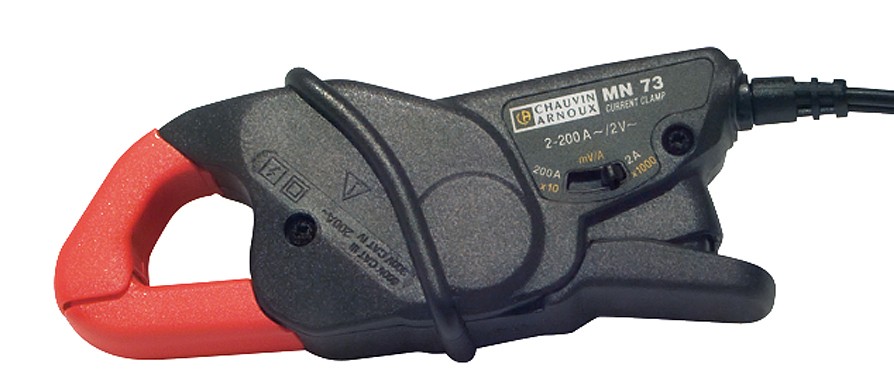

The MN Series is a range of versatile transformer clamps for measuringalternating currents up to 240 A with a multimeter or a power analyser.
Compact and ergonomic, the jaw is suitable for measurements in placeswhere access is difficult and can also be used to clamp any cable up to 20 mm in diameter ininstallations up to CAT III 600 V or CAT IV 300 V.
The MN71 clamp has been developed in particular for current measurements on the secondary windings of current transformers.
Main features of the MN71 model:
- Rated current: 10 A AC
- Output signal: AC voltage
- Output / input ratio: 100 mV / A AC
- Output via lead and isolated Ø 4 mm male plugs
