The MN Series is a range of versatile transformer clamps for measuringalternating currents up to 240 A with a multimeter or a power analyser.
Compact and ergonomic, the jaw is suitable for measurements in placeswhere access is difficult and can also be used to clamp any cable up to 20 mm in diameter ininstallations up to CAT III 600 V or CAT IV 300 V.
The quality of the MN21 clamp's magnetic circuits can be used for current measurements from 100 mA with excellent linearity and a low phase difference.

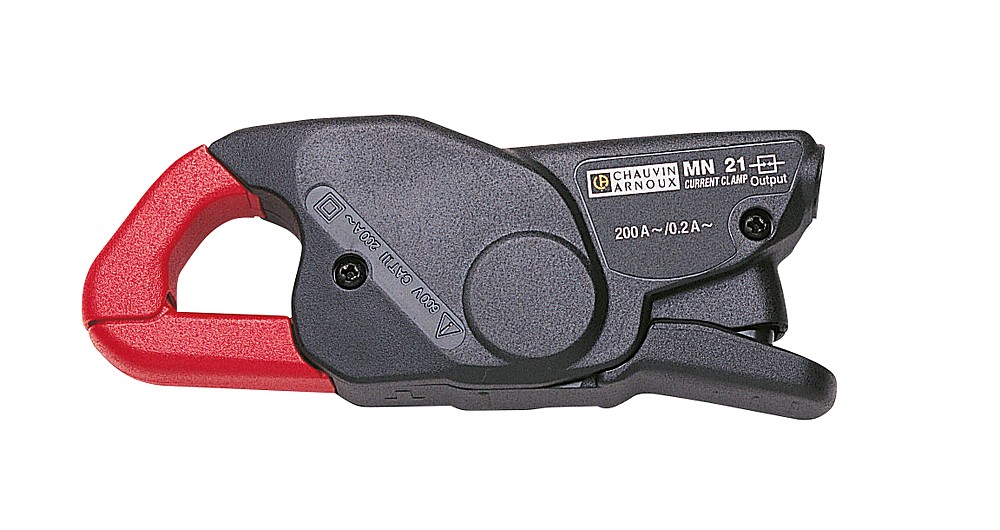

Main features of the MN21 model:
- Rated current: 200 A AC
- Output signal: alternating current
- Transformation ratio: 1,000/1
- Output via lead and isolated Ø 4 mm male plugs
- Outputprotected against voltage surges
