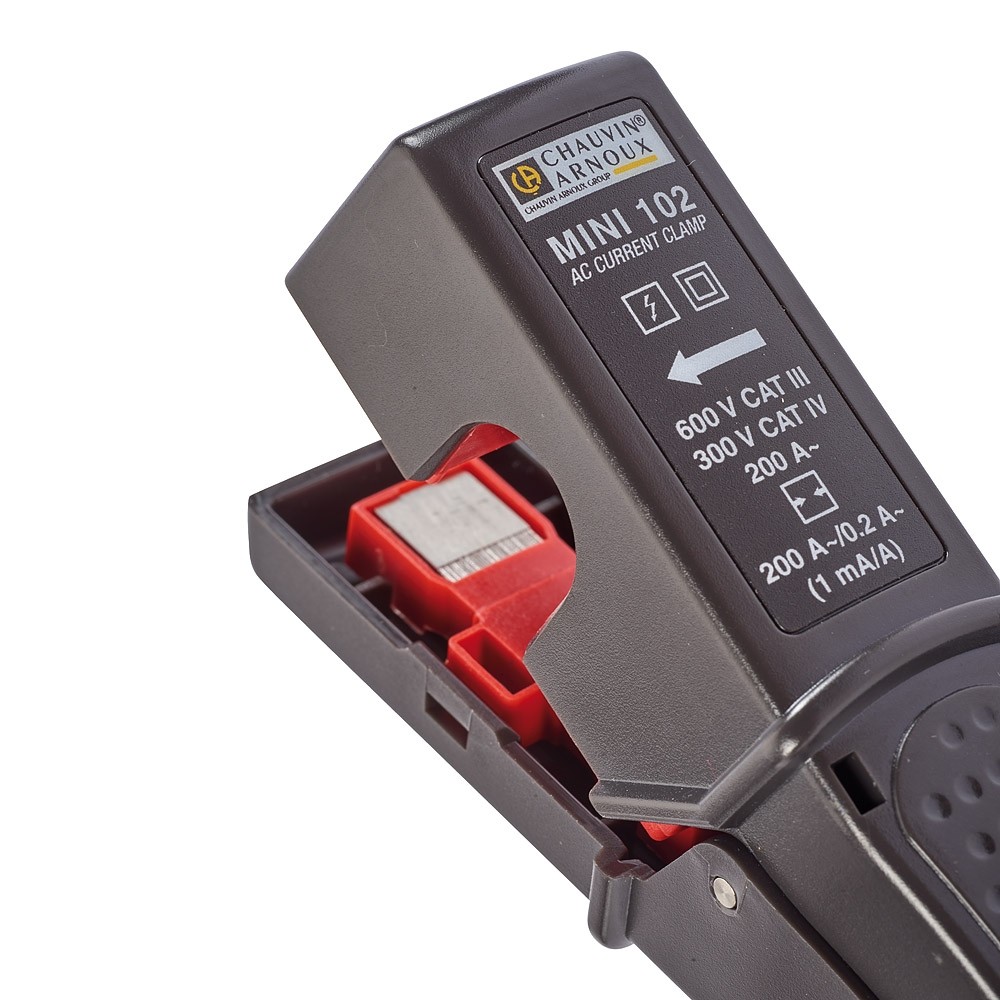

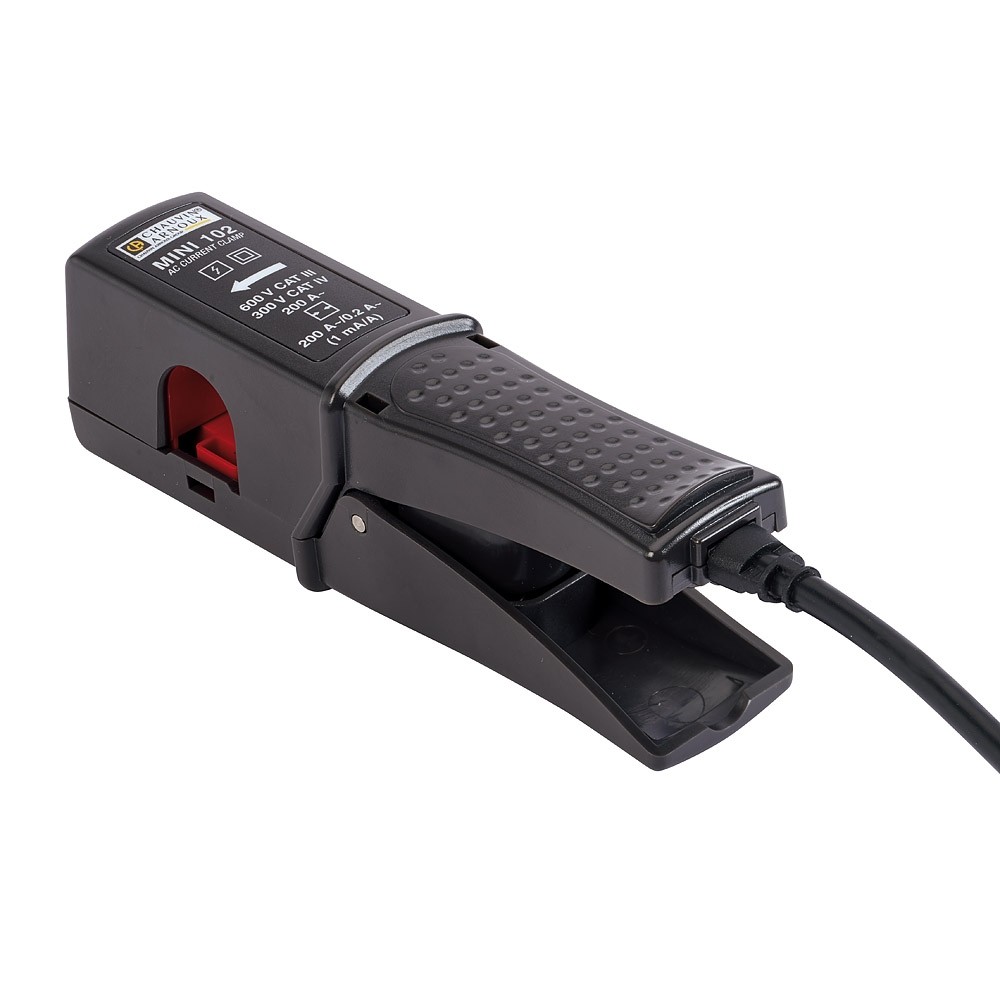

The compact MINI 102 current clamp is an ideal complement for any multimeter to measure alternating currents up to 200 A
And it will take a power analyser to make the best use of its excellent metrological performance and reveal the whole extent of its talents.
If there is a current flowing in the conductor clamped, the MINI 102 clamp is protected against voltage when is disconnected from the measuring instrument.
Main features of the MINI 102 model:
- Rated current: 200 A AC
- Ø 16 mm max.
- Output signal: alternating current
- Transformation ratio: 1,000/1 (1 mA/A AC)

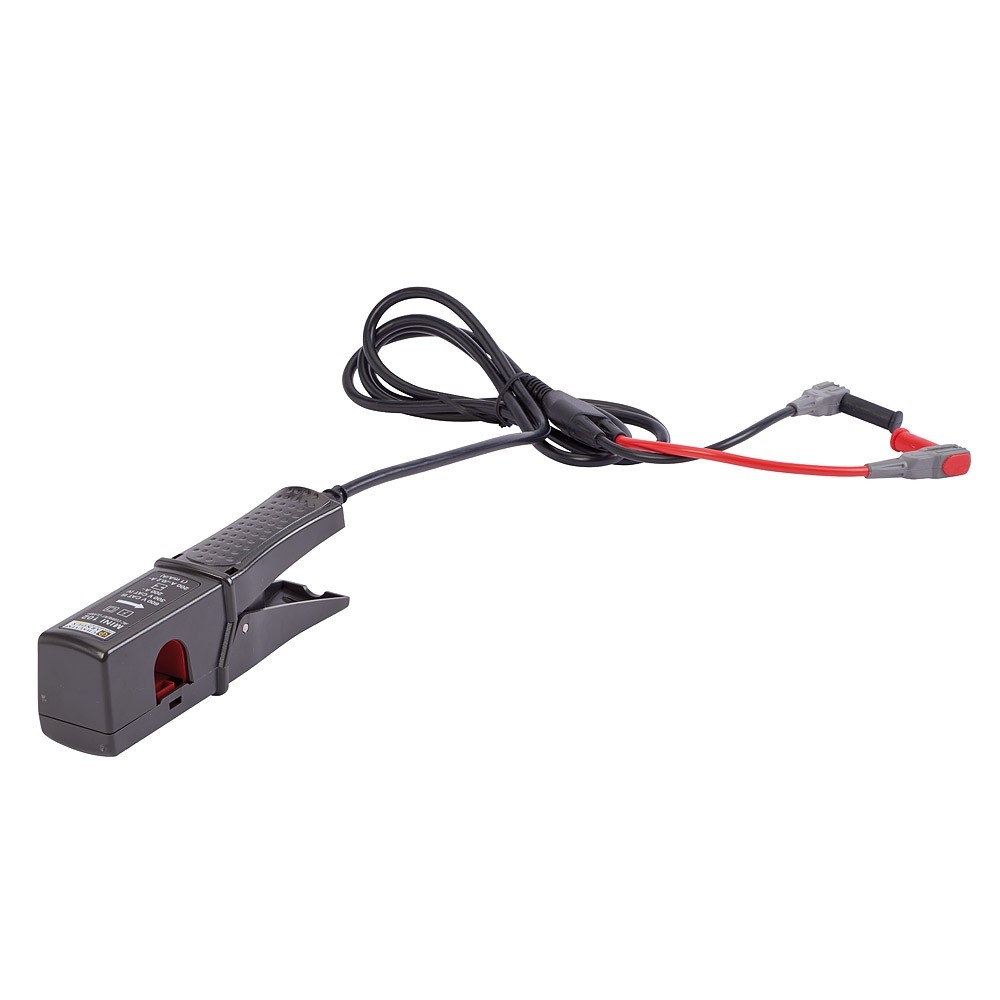

- Output via lead and isolated Ø 4 mm male plugs
- Output protected against voltage surges
Equipped with a high-performance magnetic material and a double winding, the MINI102 clamp offers excellent performance in terms of phase offset and linearity, meeting all the requirements of watt metering applications.
