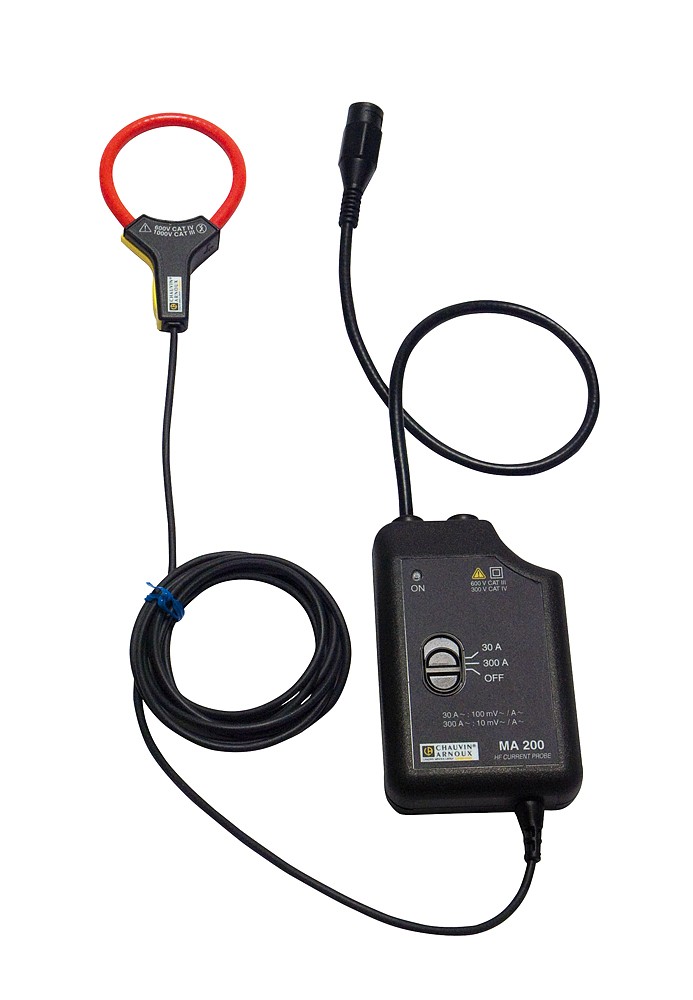

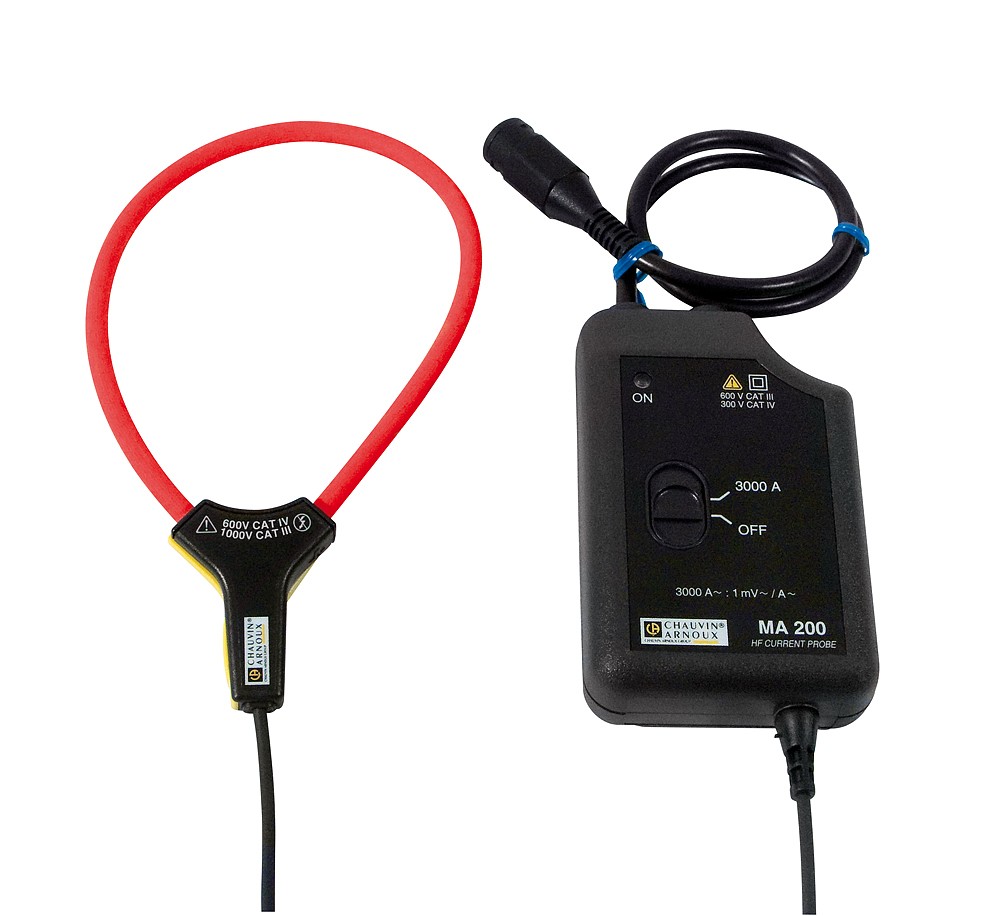

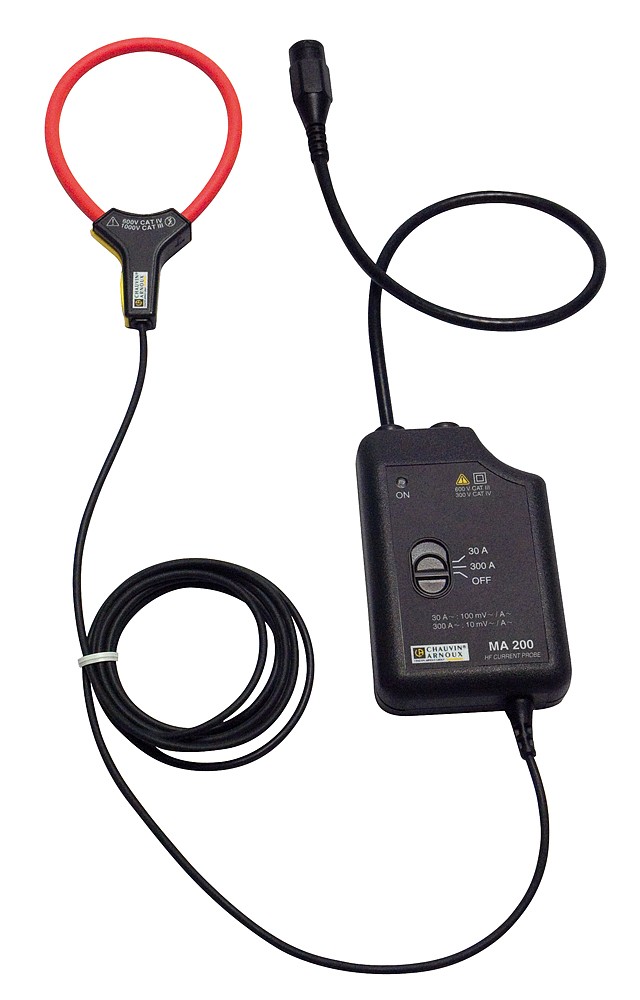

The MA200 Series is a family of "high-frequency" flexible sensors for viewing and measuring electrical or electrotechnical currents with significant variations and amplitude.
These "isolated current probes for oscilloscopes" offer a bandwidth of 1 MHz and can be used to analyse currents with complex forms, transients present in power electronics power supplies, welding units, etc., …Main specifications:
- Measurement range from 500 mA AC to 3,000 A AC
- Single or bi-calibre
- Bandwidth of up to 1 MHz
- 3 clamping diameters: 45 mm, 70 mm and 100 mm
- 600 V CAT IV / 1,000 V CAT III
