MA130 MiniFlex

  • 600vcat4
  • IP67
Description

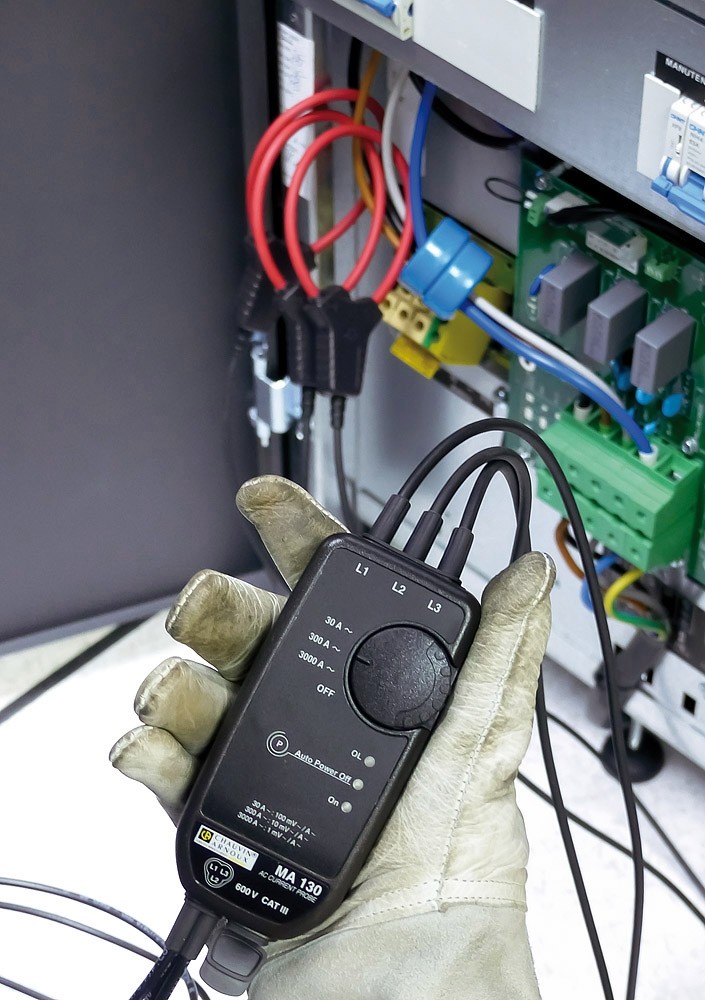

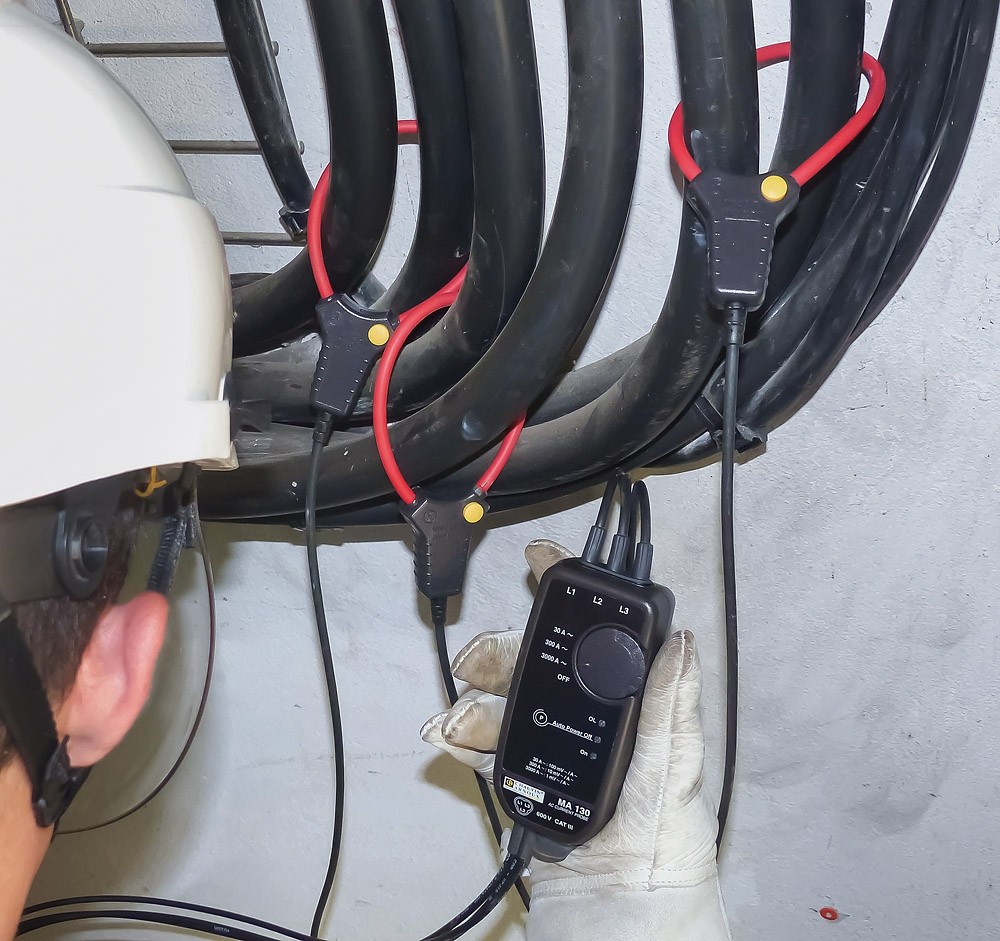

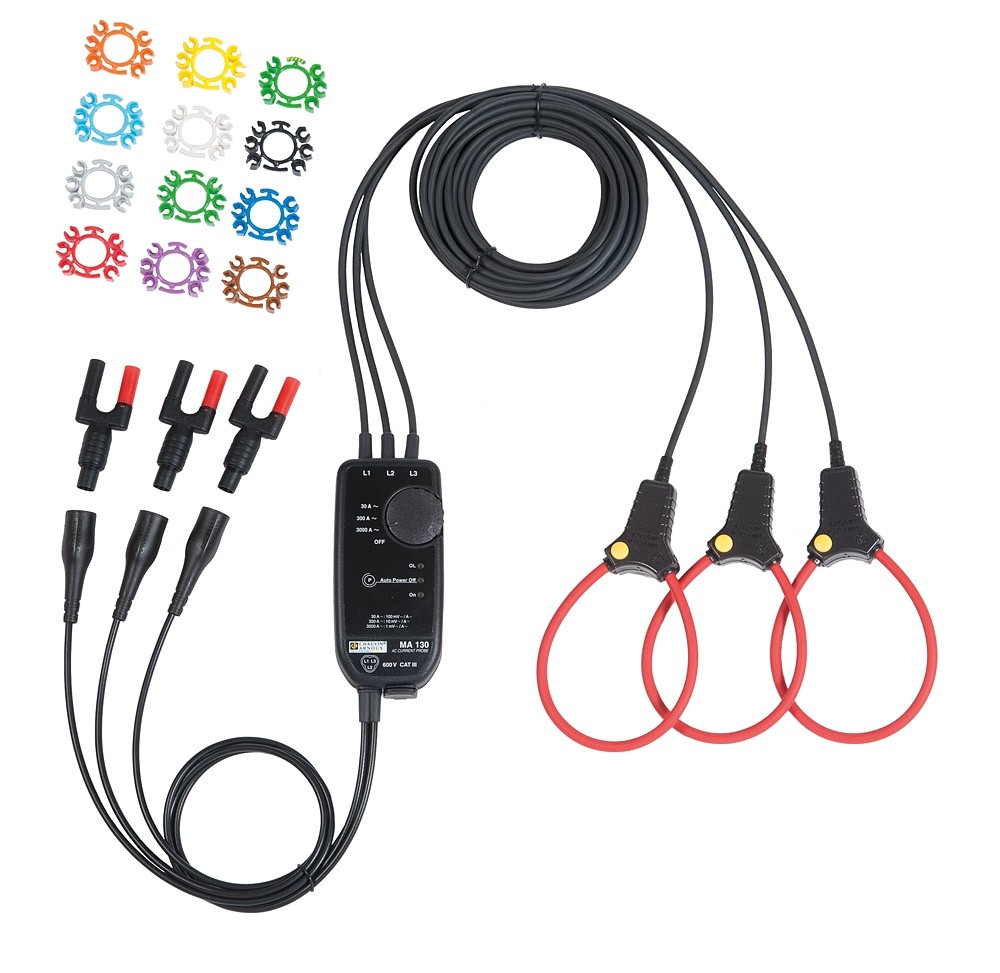

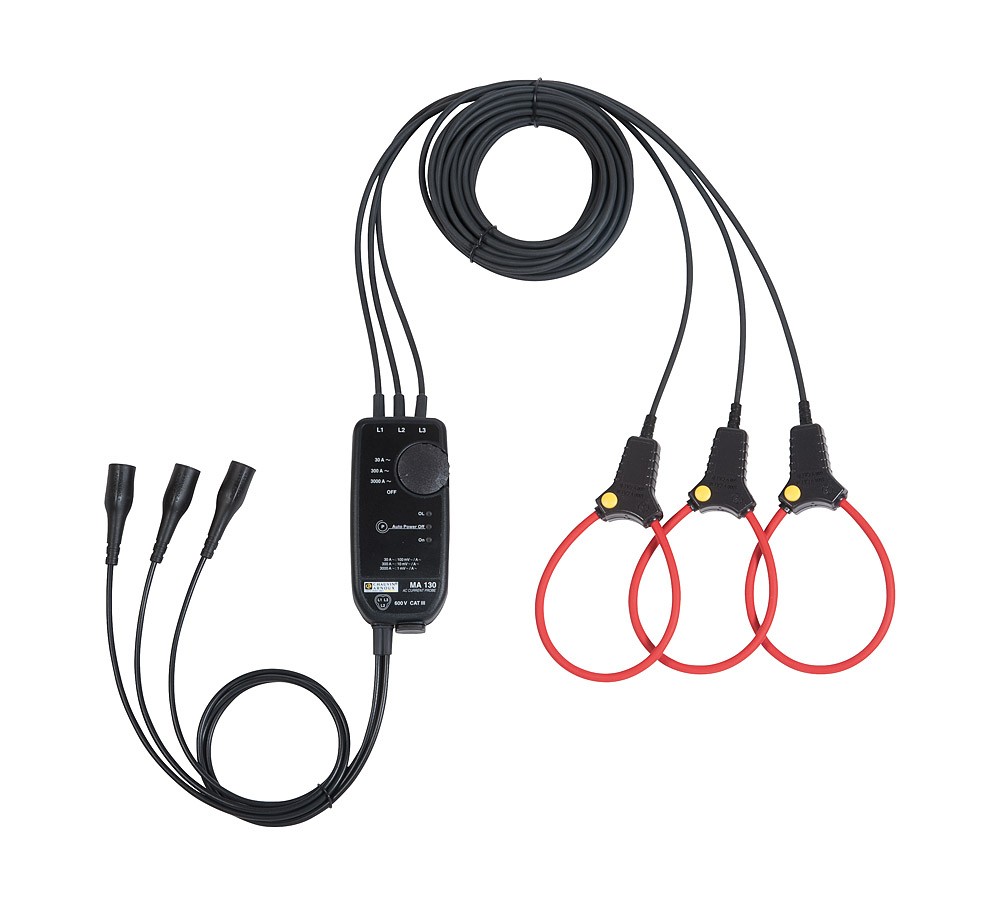

The MiniFlex® MA130 is a flexible current sensor comprising 3 measurement loops. It can be connected directly to a power analyser, logger, etc., to measure 3-phase currents or to perform up to 3 independent current measurements.
These flexible coils offer the following major advantages:
•   Current measurement even in places where access is difficult
•   Large measurement range
•   Bandwidth suitable for industrial frequencies and harmonic analysis
•   No saturation effect, so no overheating
•   Constant low phase shift appropriate for wattmetric measurements

Main specifications:
•   Measurement range: 0.5 A to 3 kA
•   3 calibres
•   Sensor length (clamping Ø): 25 cm (Ø 7 cm)
•   Ingress protection of sensor/processing unit: IP67 / IP54
•   Output signal: AC voltage
•   Output via 3 coaxial cables terminated by isolated BNC safety plugs
•   Power supply: 2 x 1.5V AA batteries or external µUSB type B 5V
•   Battery life: 500 hours
•   600 V CAT IV
Designation
Price
Reference
Quantity
Actions
MiniFlex® MA130-250
Accessories
-
P01120663
-
