Description

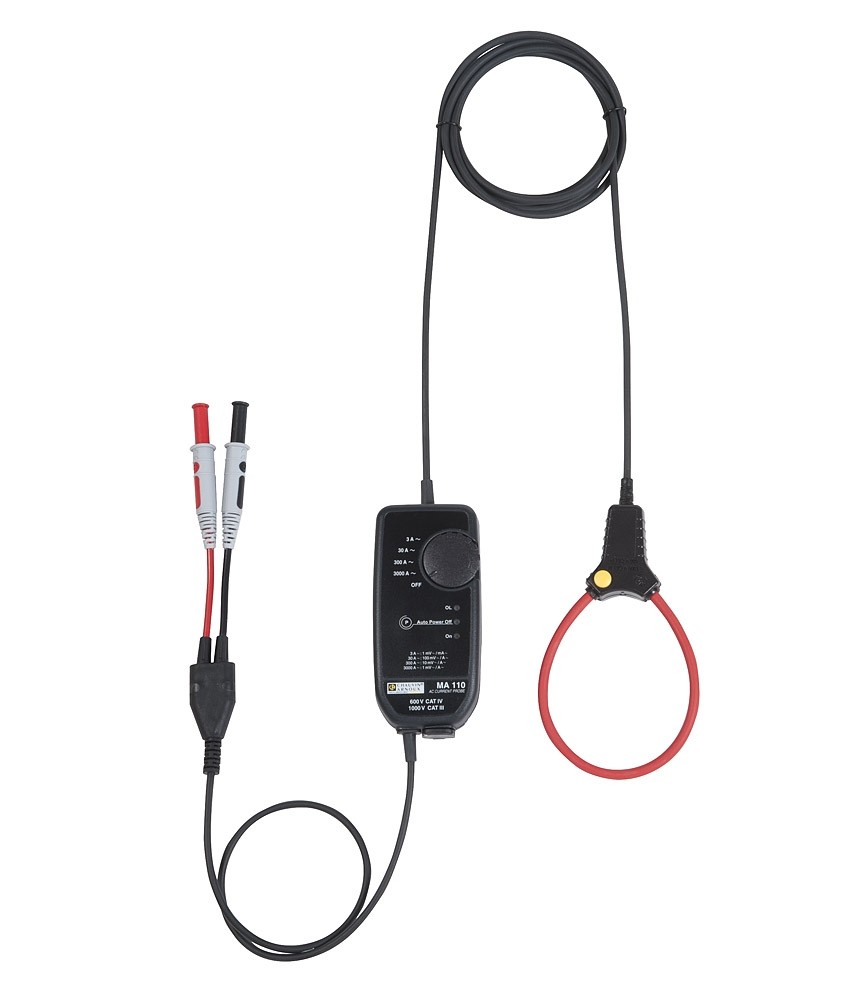

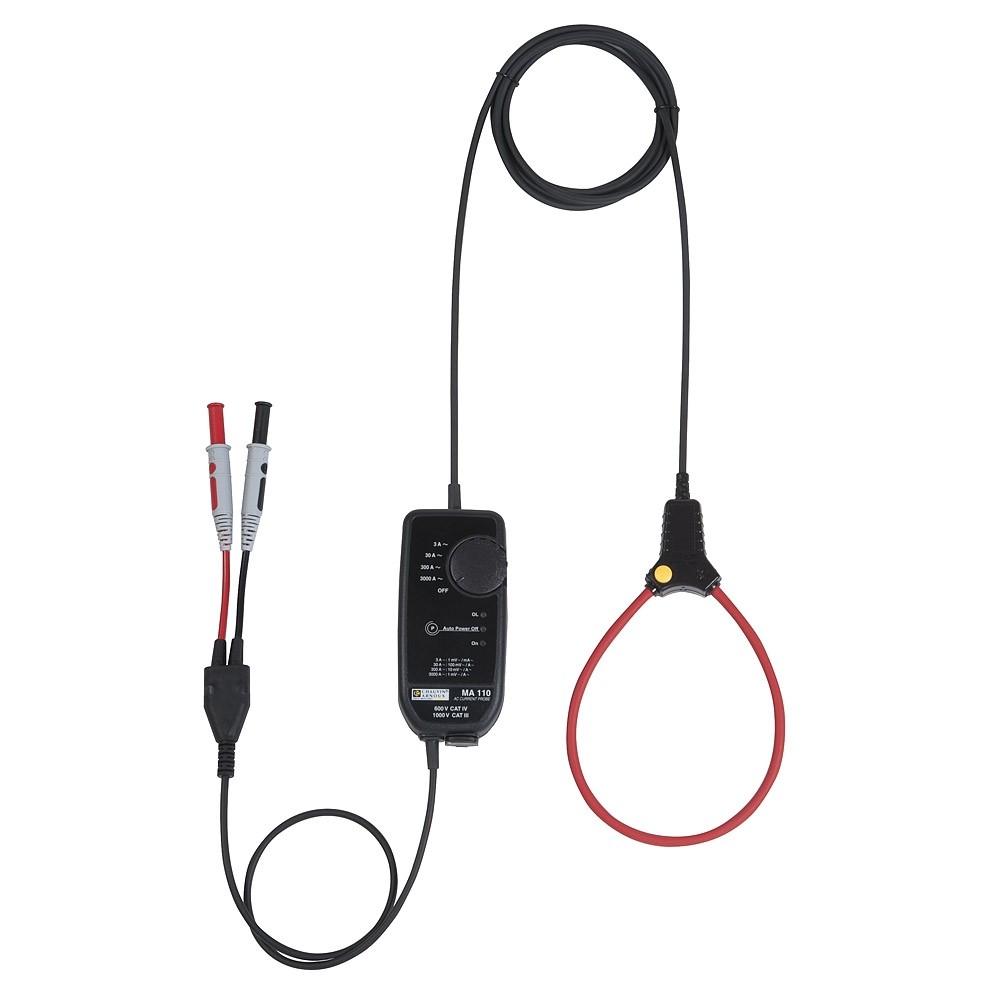

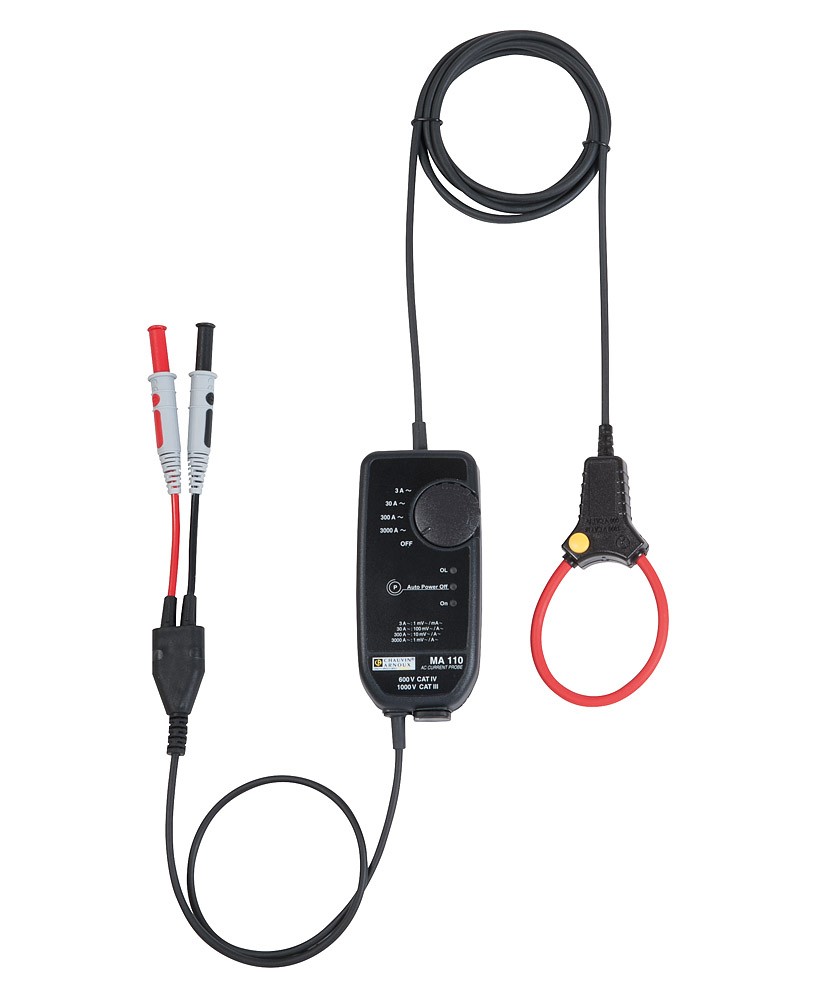

The MiniFlex® MA110 Series comprises 3 flexible sensors which can be connected directly to any multimeter, wattmeter, logger, etc.
These flexible coils offer the following major advantages:
• Current measurement even in places where access is difficult
• Large measurement range
• Bandwidth suitable for industrial frequencies and harmonic analysis
• No saturation effect, so no overheating
• Constant low phase shift appropriate for wattmetric measurements
Main specifications:
• Measurement range: 80 mA to 3 kA
• 4 calibres
• Sensor length (clamping Ø): 17 cm, 25 cm or 35 cm (Ø4.5 cm, Ø7 cm, Ø10 cm)
• Ingress protection of sensor/processing unit: IP67 / IP54
• Output signal: AC voltage
• Output via two-wire lead terminated by 2 x Ø 4 mm straight male banana safety connectors

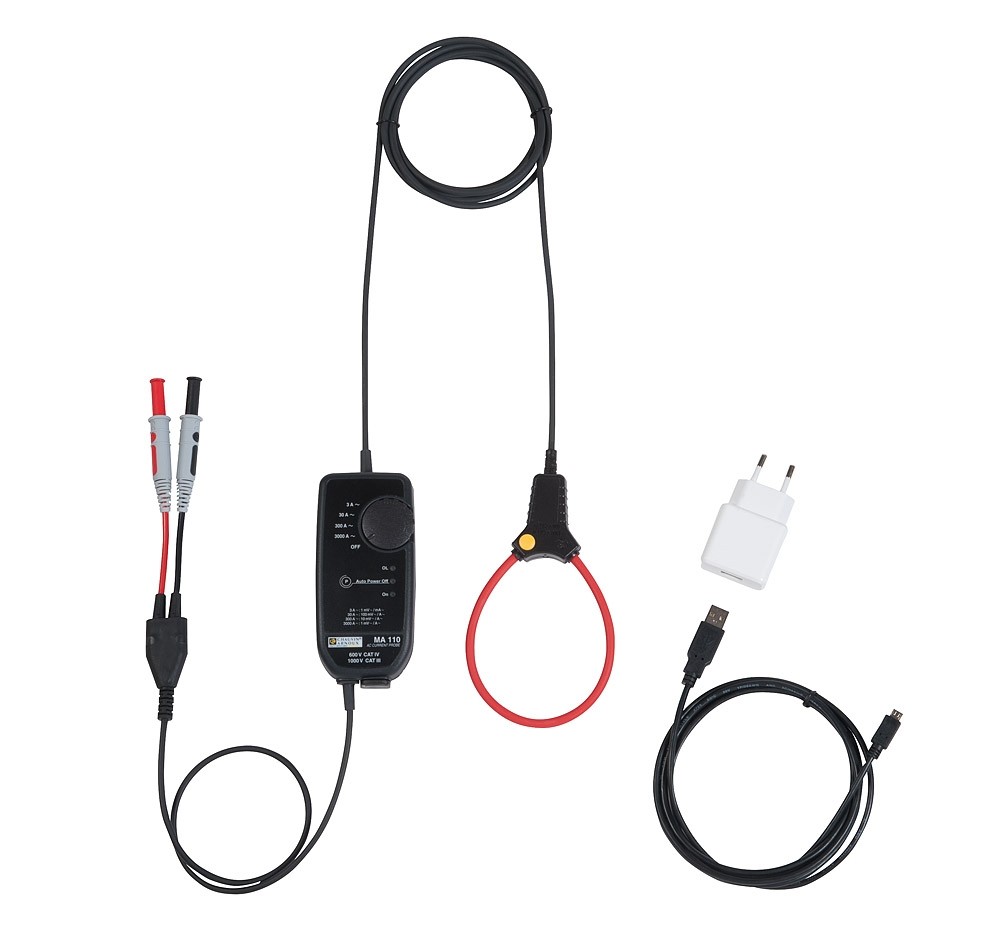

• Power supply: 2 x 1.5V AA batteries or external µUSB type B 5V
• Battery life: 300 hours
• 600 V CAT IV
