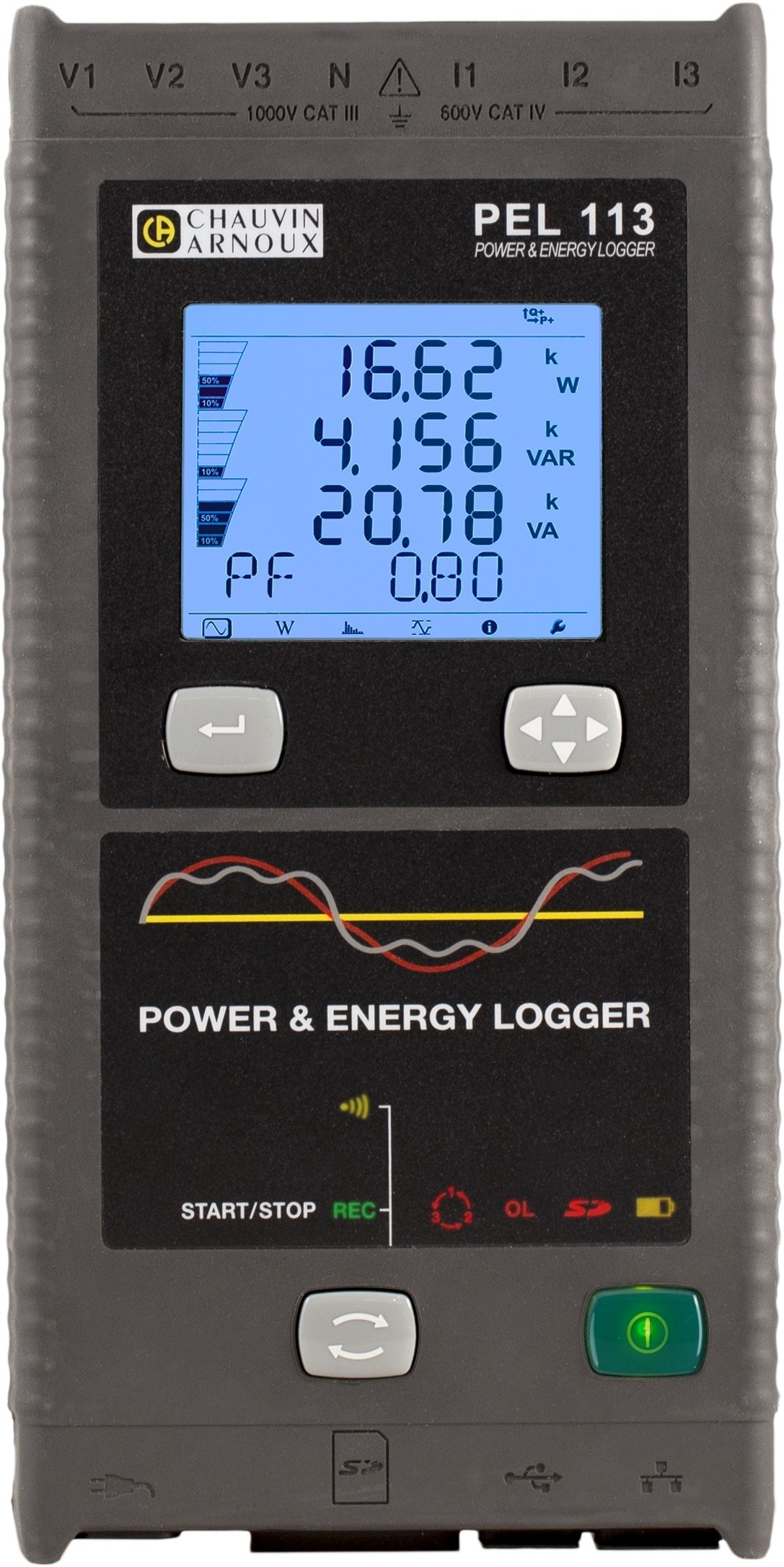

POWER LOGGER PEL 113

PEL 113
  • 1000vcat3
  • 600vcat4
  • Ethernet
  • fabrication
  • IP54
  • SD
  • WIFI
  • USB
  • ANDROID
Highlights
  • Possibility of recordings covering several months
  • Breakdown of energy losses
  • Installation without cutting off the mains supply
  • Android application with motor diagnostics
Description

The PEL 113 measures and records all the power and energy values.
It can be used wherever there is electricity:
• electricity generator: renewable energies, thermal energy, etc.
• industries: metallurgy, glassmaking, agri-food
• residential buildings, tertiary, etc.
• infrastructure and transport
• datacenters, etc.
Applications
• Energy audits
• Electrical diagnostics
• Industrial maintenance
Simple, effective ergonomics
• compact and magnetized
• 3 voltage inputs and 3 current inputs
• quadruple backlit digital display
• self-powered via the phase
RMS and DC measurements
• AC and/or DC voltages up to 1,000 V
• currents up to 10 kA AC or 5 kA DC (depending on the current sensor).
• active, reactive and apparent power values
• active, reactive and apparent energy values
• fundamental and balanced active power values and unbalanced active power values
• measurements and characterization on motors (via Android application)
Functions
• breakdown of energy losses
• phase information: cos φ, tan Φ, power factor (PF)
• crest factor
• THD calculation for currents and voltages
• DC, 50 Hz, 60 Hz and 400 Hz (Naval, etc.) measurements
PEL Transfer software
With the PEL Transfer software you can:
• set up your PEL
• check the connections before recording begins
• download the measurements recorded in the PEL
• view the results of the various measurements and analyses
Additional advantage: PEL Transfer converts your electricity consumption into the local currency (€, £, $, etc. - 8 tariff ranges).

Communication and networks
The PEL 110 models offer multiple communication modes:
- USB , the simplest link when not working remotely
- Ethernet RJ45 or Wifi (server): connect your PEL11x to the server to communicate from any workstation in the network equipped with the PEL Transfer software
- Wifi (Access Point):
• Create a direct link between the PEL11x and your computer
• The Access Point (AP) mode supports up to 5 clients

Designation
Price
Reference
Quantity
Actions
LOGGER PUISSANCE PEL113 MA194-350
Accessories
-
P01300003
-
Quotation
LOGGER PUISSANCE PEL113
Accessories
-
P01157157
-
Quotation
