To deal with the highest level of low-voltage electrical installations, the F400 Series has a high protection rating and is ideal for maintenance, testing, monitoring and diagnostics on medium-power installations.

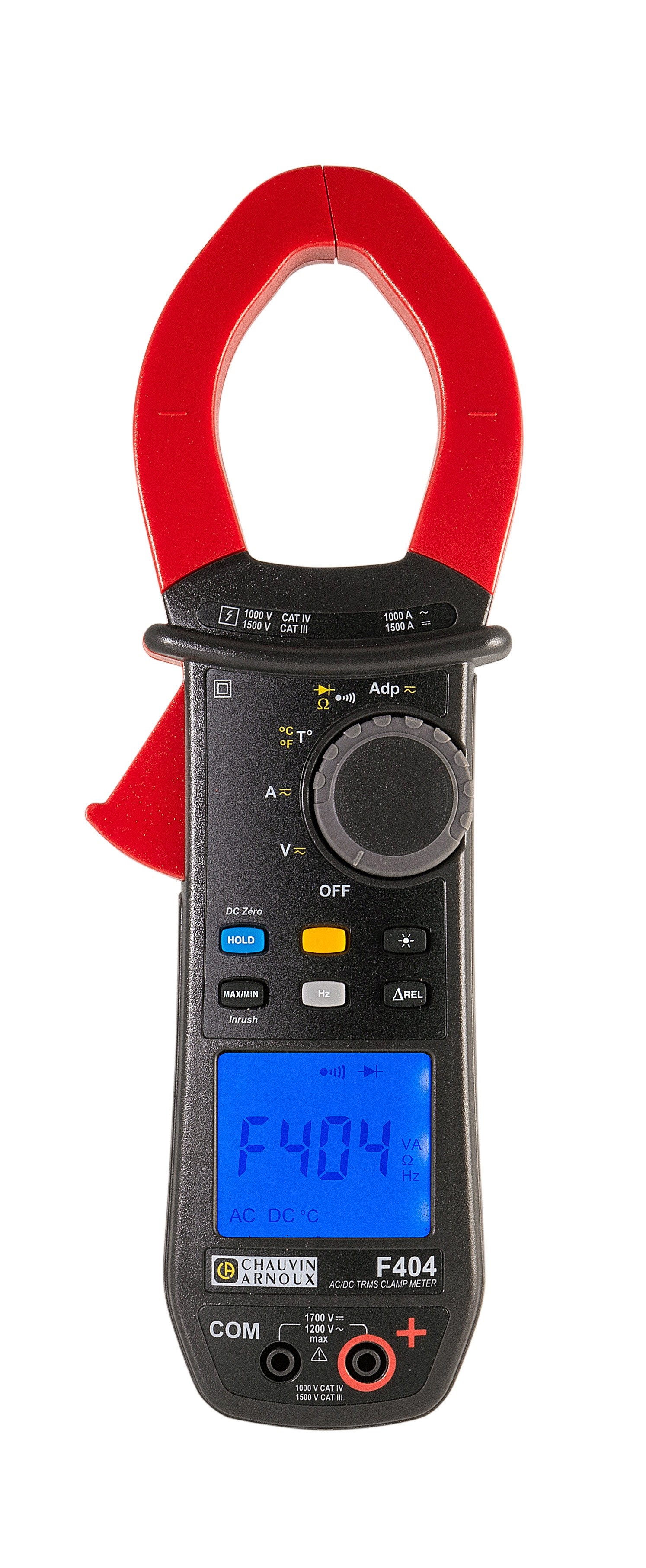

Equipped with a fast 12-bit TRMS digital acquisition system, F404 clamps offer particularly accurate measurements whatever the signal's waveform.
Specifications:
Clamping diameter: 48 mm
Current: 1,000 A AC / 1,500 A DC
Voltage up to 1,200 VAC / 1,700 VDC
Resistance and audible continuity
Temperature
Automatic AC/DC detection
TrueInrush current measurement
Hold, Min, MAX
RELative (ΔX) and differential (ΔX/X) measurements
Adapter function
Adapter function
CAT IV 1,000 V / CAT III 1,500 V
IP54 protection rating
