CA 6652 EV charging station adapt.

CA 6652 EV charging station adapt.
  • fabrication
  • IP54
Highlights
  • Compact
  • Ergonomic design
  • Compliant with IEC 61851-1, IEC 60364-7-722
  • Indoor and outdoor use
  • Immediate diagnosis of the behaviour of the EVSE AC charging point
  • Safety test of the charging point, thanks to the e-mobility solutions of the associated EVSE packs
Description

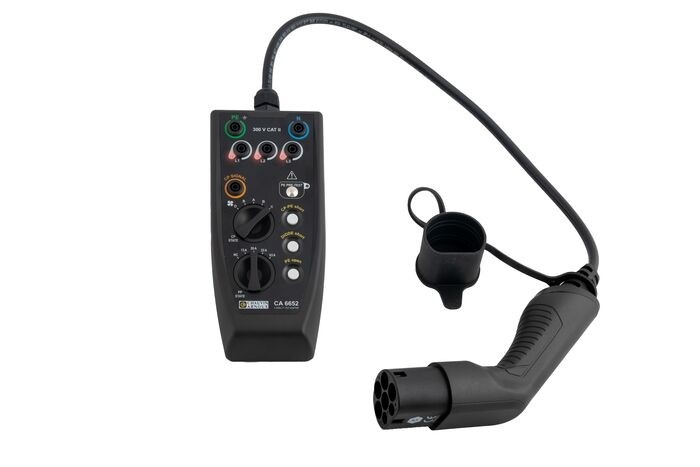

The CA 6652 is a test adapter with type 2 connector for EVSE AC charging stations. It can be used as a stand-alone product and is included in the e-Mobility solutions offered by Chauvin Arnoux.

The CA 6652 is specially adapted to the needs of the various players in the EVSE AC sector:

Manufacturers for the qualification of EVSE terminals
- Installers for the deployment and commissioning of an EVSE fleet
- Service and maintenance companies for EVSE bollards
- Inspection bodies for initial and periodic inspections
- Educational institutions for educational events on the EVSE


Used on its own or integrated into e.Mobility solutions, the CA 6652 is an essential component for intelligent, reliable and sustainable charging applications for BEV/BHEVs.

Features
- Fitted with a type 2 socket in accordance with IEC 62196-2
- Detection of dangerous voltage on PE by conductive button
- Illuminated indication of single-phase and three-phase voltages
- Simulation of electric vehicle states: A, B, C, D (CP control pilot)
Simulation of maximum permissible load on NC cable, 13A, 20A, 32A, 63A (PP proximity driver)
- Simulation of fault conditions:

  • CP-PE short-circuit
  • CP-PE diode short-circuit
  • PE opening

- Connectivity: 4mm banana plugs for easy connection of measuring and test equipment

General specifications
- Use: -20°c + 55°c
- IP54 / IP40
- Dimensions: 221 x 100 x 44 mm
- Weight: approx. 850g

Compliance with standards / safety
- Adapter: IEC / EN 61010-2-031
- Category: 300V CAT II
- CEM : IEC / EN 61326-1

EVSE Packs
- Enables IEC 60364-7-722 compliant testing with IRVE packs including CA 6652 and installation tester

Additional characteristics
• Designed and manufactured in France

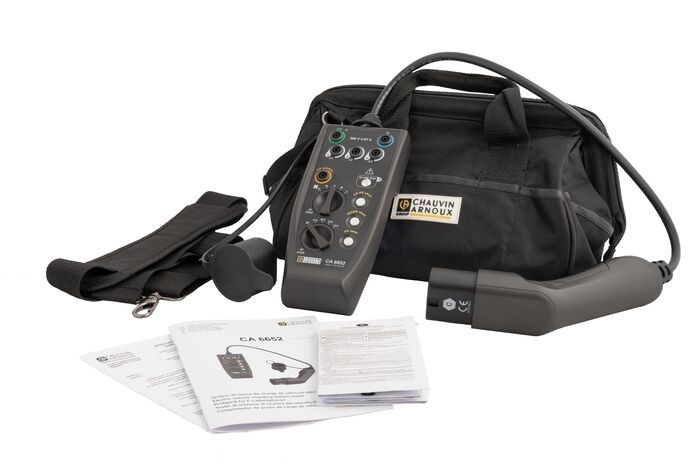

• Supplied in a carry bag with quick start guide, safety data sheet and verification certificate
• 3-year warranty

Designation
Price
Reference
Quantity
Actions
CA6652 ADAPTATEUR BORNE RECHARGE VE AC
-
P01191309
-
