The C Series is a range of high-performance 1,000 A transformer
clamps. The round jaw shape and the uniformly-distributed winding
guarantee accuracy and minimum phase difference.
It is equipped with an oscillating magnetic element adjustment system and a patented system for gradual assisted jaw opening.
Ø 52 mm clamping capacity allows current measurements on most
conductors on CAT III 600 V industrial and tertiary installations.
This multi-calibre clamp offers 3 sensitivities for better measurement resolution and accuracy.

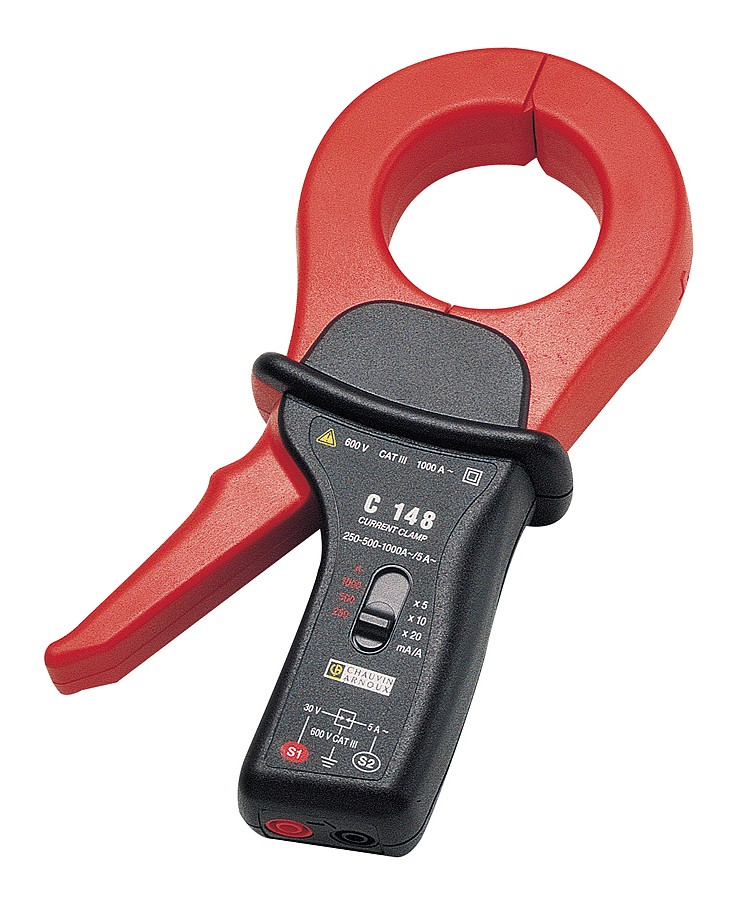

Main features of the C148 model:
- Output signal: alternating current
- Transformation ratio: 250/5, 500/5 and
- Output via isolated Ø 4 mm female sockets
- Output protected against voltage surges
