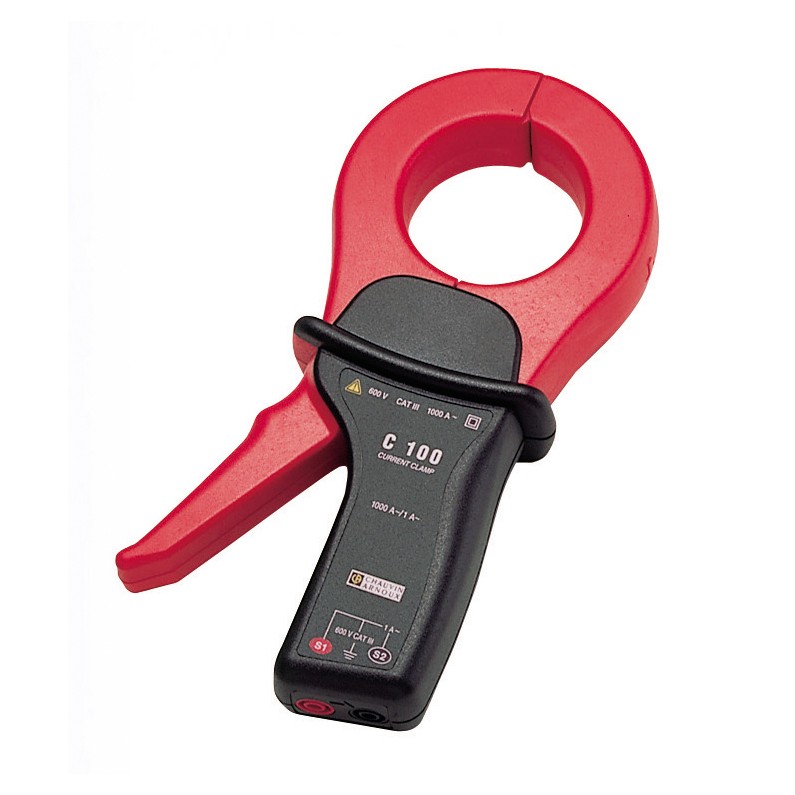

The C Series is a range of high-performance 1,000 A transformer
clamps. The round jaw shape and the uniformly-distributed winding
guarantee accuracy and minimum phase difference.
It is equipped with an oscillating magnetic element adjustment system and a patented system for gradual assisted jaw opening.
Ø 52 mm clamping capacity allows current measurements on most
conductors on CAT III 600 V industrial and tertiary installations.
excellent performance in terms of phase difference and linearity of
this clamp equipped with a µmetal core fulfil the requirements for
Main features of the C116 model:
- Output signal: alternating voltage
- Output / input ratio: 1 mV / A AC
- Output via isolated Ø 4 mm female sockets
