C.A 6545

  • 1000vcat3
Description

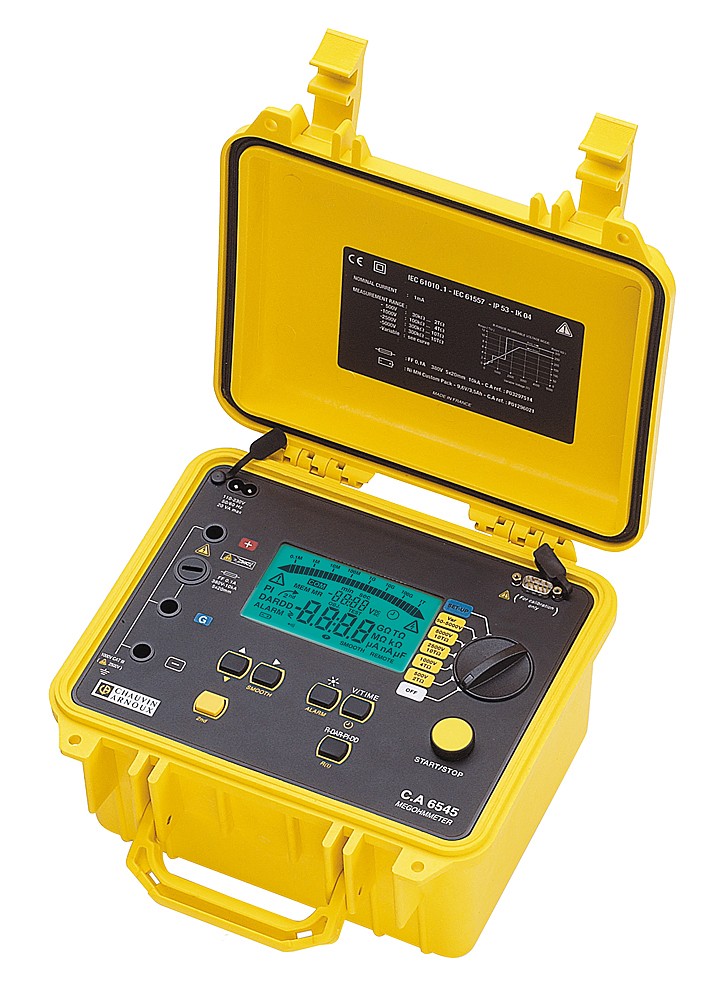

5,000 V digital insulation tester

In its site-proof case, the C.A 6545 megohmmeter can be used for quantitative and qualitative analysis of insulation. It also automatically measures voltage, capacitance and residual current.

Functions and specifications:
  • measurement range: 10 kΩ to 10 TΩ
  • 4 fixed test voltages: 500 / 1,000 / 2,500 and 5,000 V
  • adjustable test voltage position: 40 to 5,100 V in 10 V or 100 V increments
  • large backlit LCD screen with digital display and bargraph
  • quantitative insulation analysis: DAR, PI and DD (dielectric discharge) quality ratios calculated automatically and R(t) stored
  • large number of functions: programmable test duration, test voltage locking, smooth function, programmable alarms, etc.
  • power supply: NiMH rechargeable battery for 30 days' operation with 10 DAR measurements and 5 PI measurements per day
  • electrical safety: IEC 61010-1 Cat.III 1000V or Cat.I 2500V and IEC 61557
  • dimensions: 270 x 250 x 180 mm; weight: 4.3 kg
Designation
Price
Reference
Quantity
Actions
C.A 6545
Accessories
-
P01139701
-
