Description

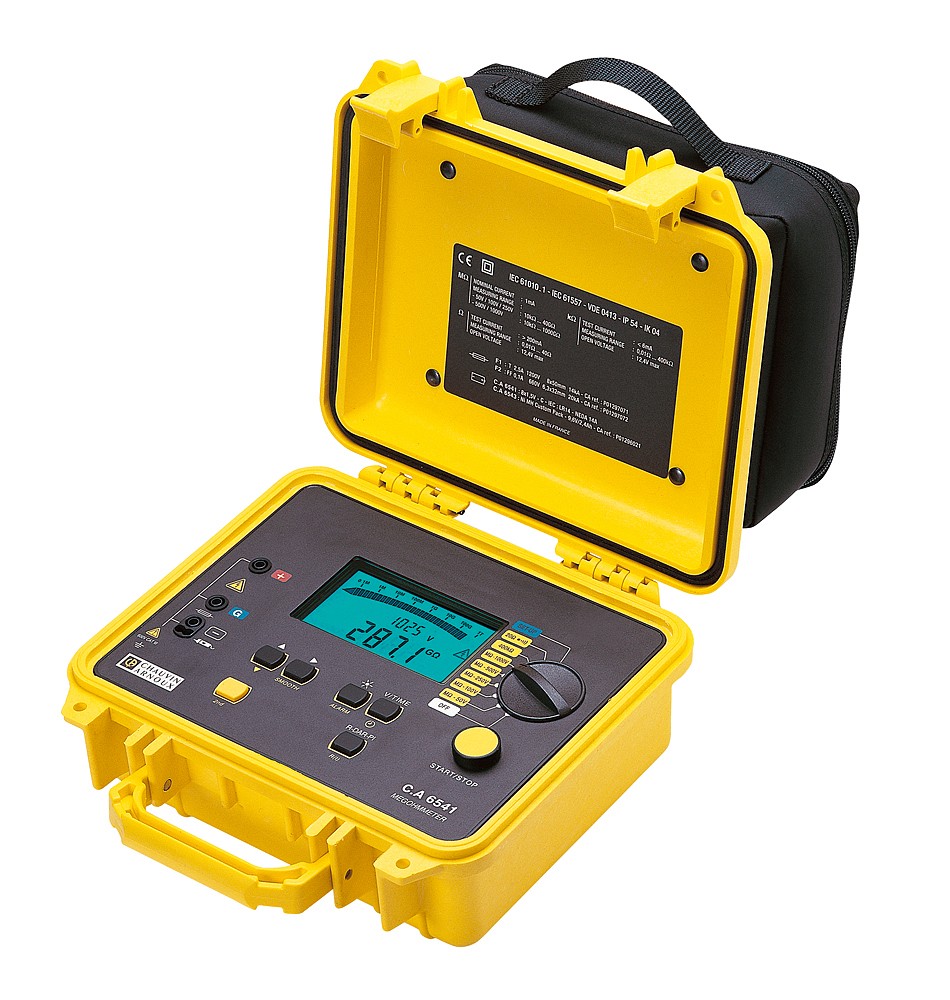

The C.A 6541 is a high-performance 50V to 1kV insulation tester; it
supports the most demanding site conditions and is ideal for qualitative
insulation analysis.
insulation: up to 4 TΩ (5 cal.) at 50/100/250/500 and 1,000 V DC
automatic calculation of insulation quality ratios: DAR and PI programmable test duration and plotting of the R(t) curve (automatic storage of 20 samples) automatic indication of voltage before and after measurement: 1 to 1,000 V AC/DC resistance: 0.01 Ω to 400 kΩ continuity: 0.01Ω to +40 Ω (audible beep and lead compensation) automatic measurement capacity after each insulation measurement: 0.005 to 4.999 µF microprocessor-controlled large LCD screen with digital display + bargraphbacklighting SMOOTH function insulation test voltages can be locked programmable alarms long battery life: 8 x LR14 batteries

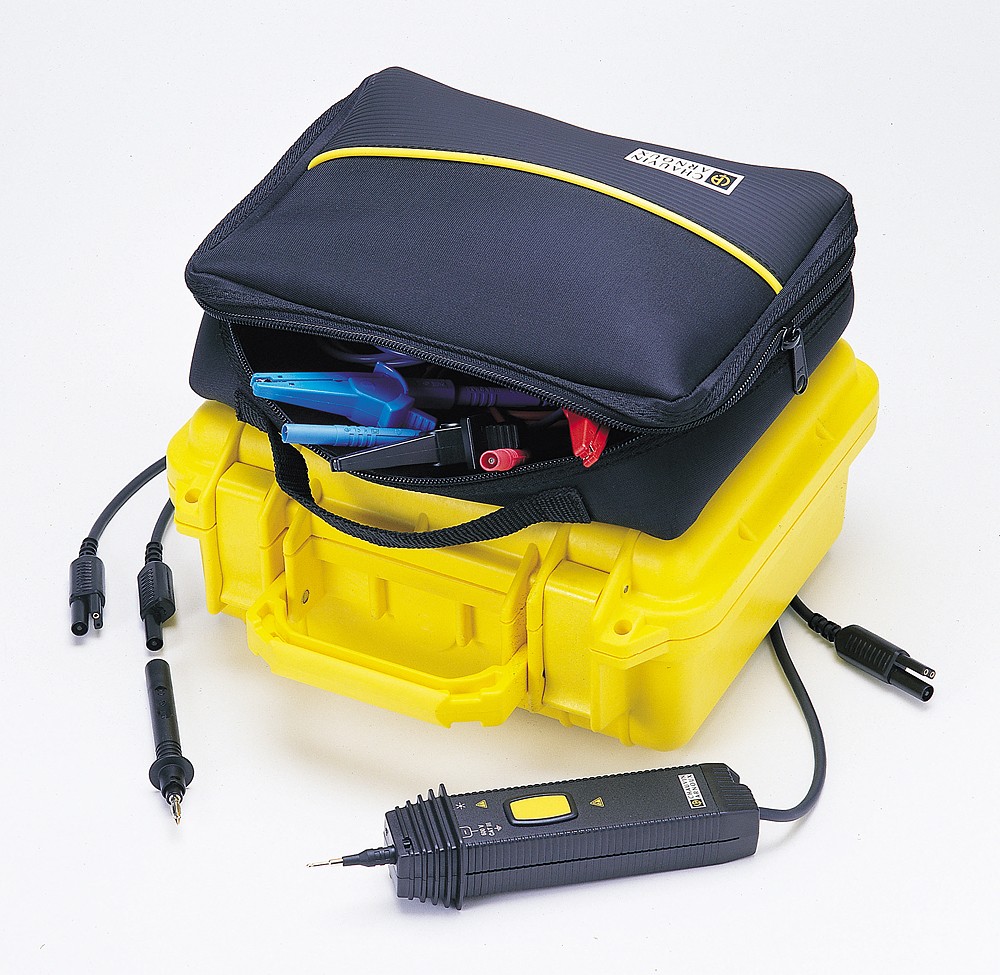

(21,000 insulation tests of 5s each) remote control probe available as an
option electrical safety: IEC 61010 600V CAT III and IEC 61557 dimensions: 240 x 185 x 110mm; weight: 3.4 kg
