Analogue insulation tester at 500 V DC

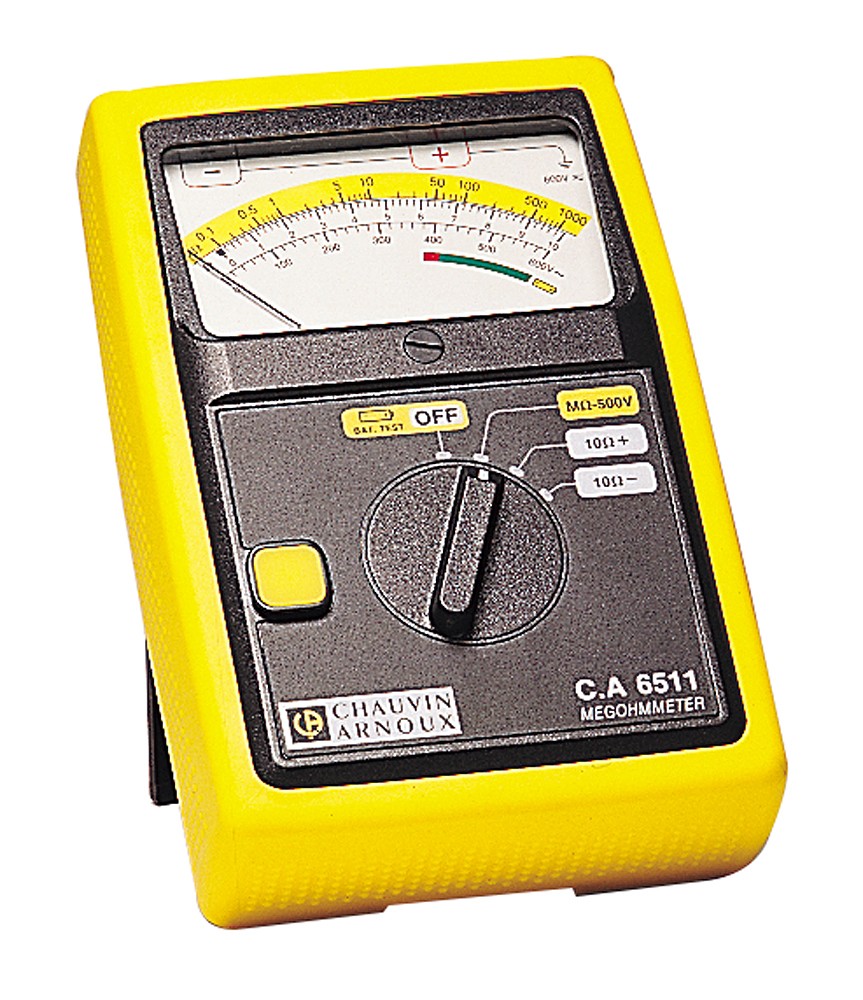

The C.A 6511
is an economical insulation and continuity tester popular with self-employed electricians, installers and maintenance departments for measurements on electrical devices and installations.
Functions and specifications:
- Insulation measurement: up to 1,000 MΩ (1 range) at 500 V DC
- AC voltage measurement: 0 to 600 V
- Continuity measurement: -10 Ω to +10 Ω (I = 200 mA)
- Automatic voltage absence testing by direct measurement
- Single input on two colour-coded terminals
- Easy reading of the indication and logarithmic scale
- Power supply: 4 x LR6 1.5 V batteries
- Compliant with IEC 61557
- Electrical safety: IEC 61010 600V Cat III
- Dimensions: 167 x 106 x 55 mm; weight: 600 g
