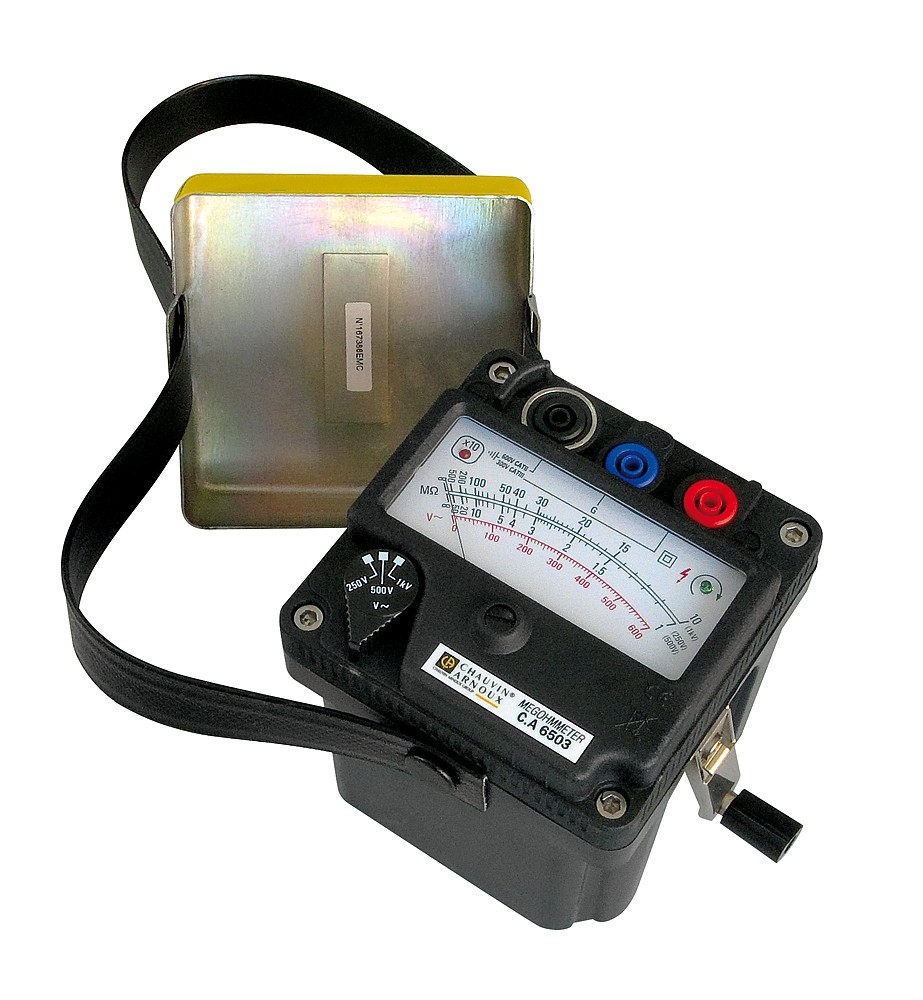

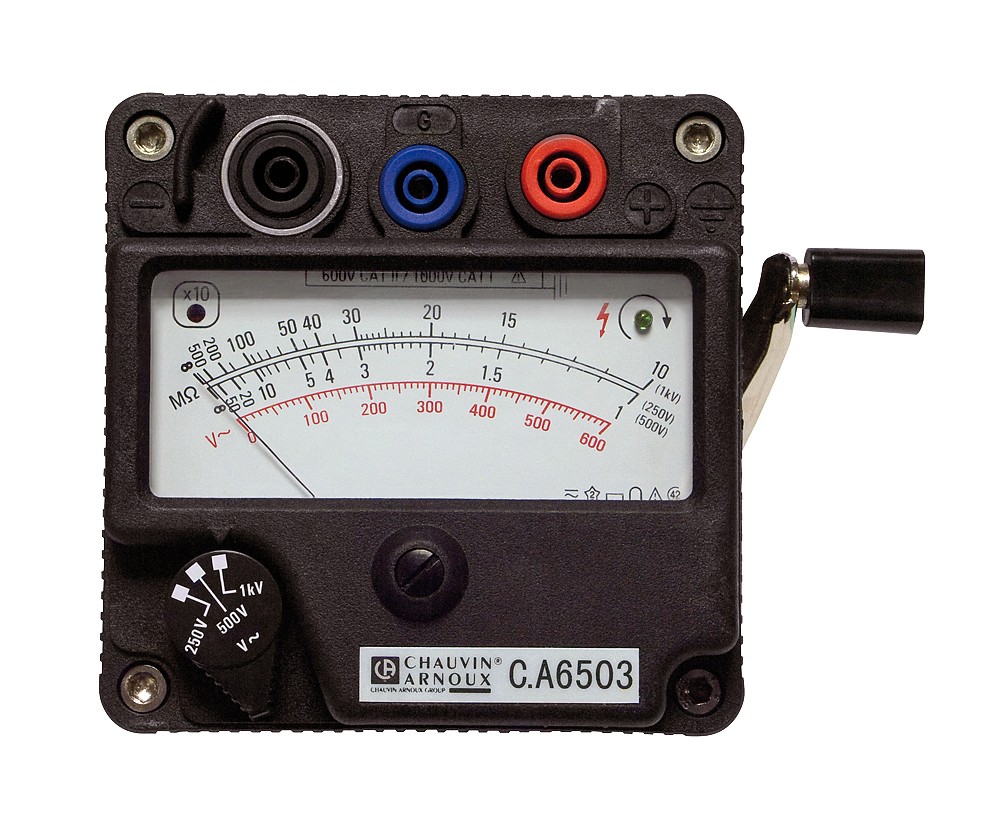

Hand-cranked portable insulation testerPortable, lightweight and compact, the C.A 6503 insulation tester can be
used totally independently because it is powered by a magneto.
This all-terrain tool is ideal for use on industrial and residential
sites, electricity distribution networks and telecommunications equipment. It
is suitable for a wide range of applications such as ensuring that electrical installations
comply with the applicable standards, or carrying out preventive maintenance on
cables, motors, circuit-breakers, transformers, etc.
Specifications:
- Test voltages: 250, 500 and 1,000 V DC
- Measurement range: 1 to 5,000 MΩ
- Power supply: magneto
- Protection: IP52
- Electrical safety: IEC 61010 300V CAT III
- Dimensions : 120 x 120 x 130 mm / 1.06 kg
