CA 5292

Technical datasheet
References
Support

Highlights

Graphical display of trends with multiple parameters and waveform up to 600 Hz
Multiple analytical tools: time/date-stamped Min/Max/Avg and Peak monitoring, filtering, duty cycle
Optimized ergonomics: IP67 watertight casing, safety measurement terminals as per IEC61010 1000V CAT III/600V CAT IV, power supply via USB charger
Top-of-the-range specifications: 100 kcts, 200 kHz bandwidth and 0.02% accuracy
Communication: USB, BT and ANDROID application via the SX-DMM software delivered, SCPI programming commands

Description

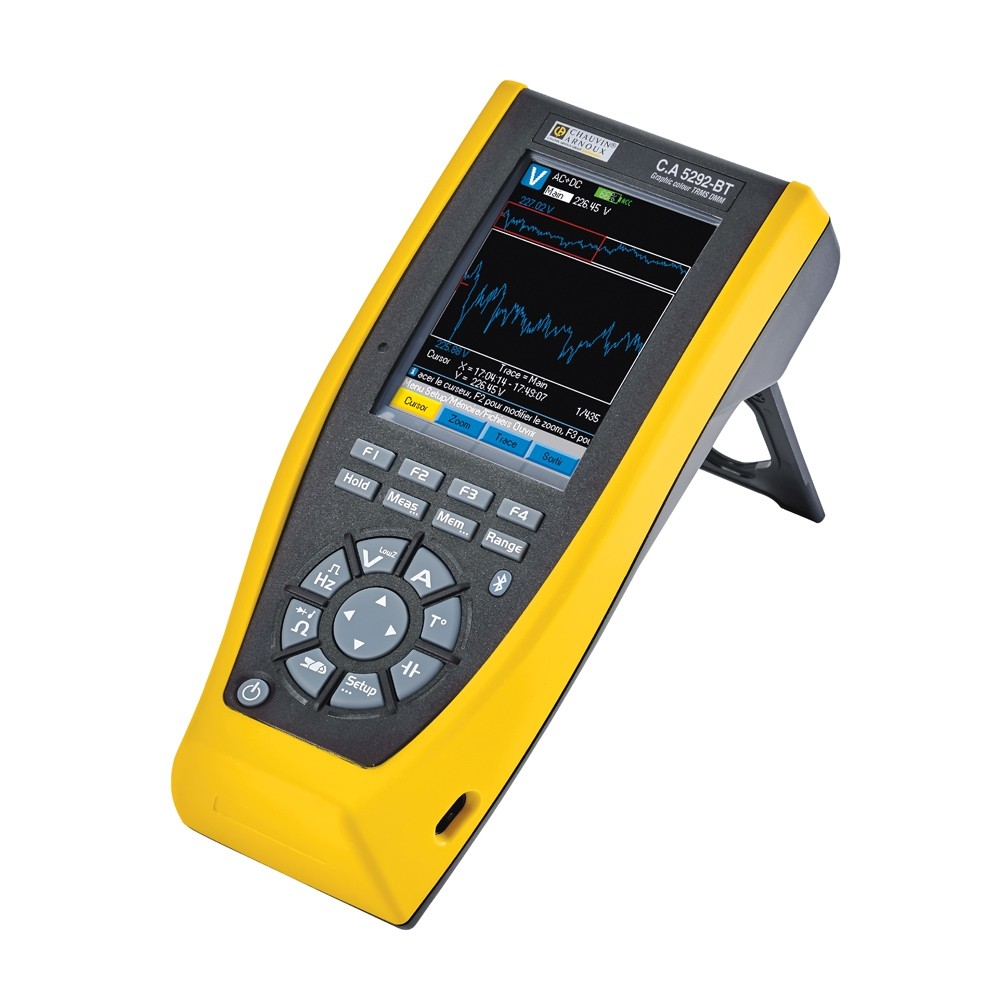

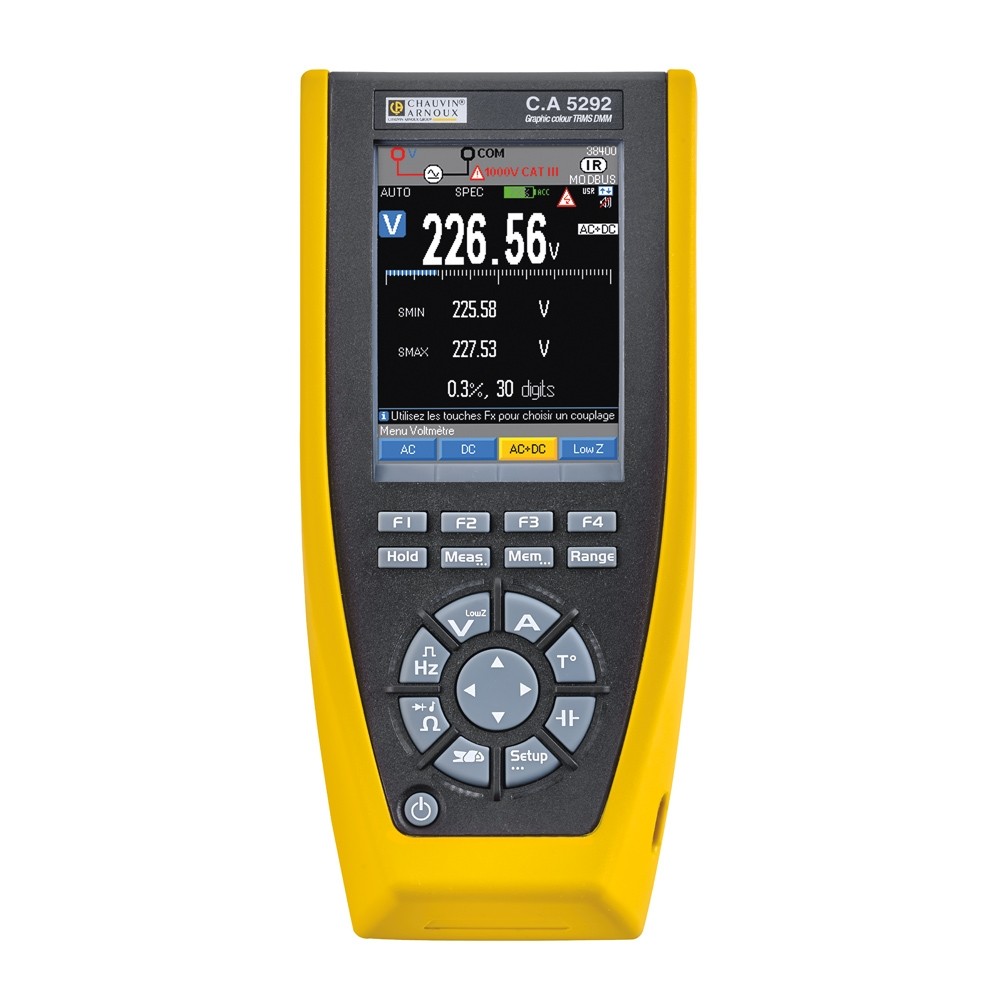

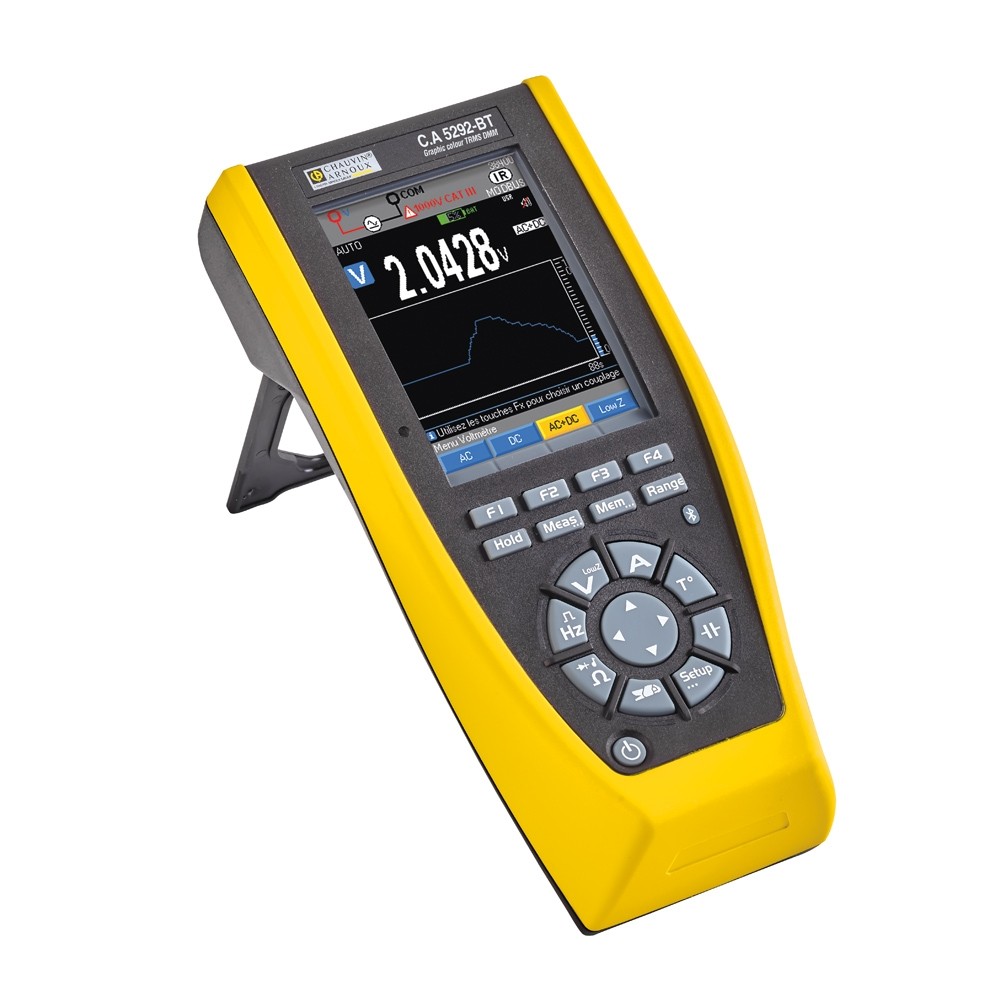

The ASYC IV portable multimeters with graphical colour display can be used for direct measurement of the main electrical quantities and instantaneous viewing of the trends and waveform. These multimeters are compact, rugged, watertight and specially designed for easy handling.
With multiple quantities measured around the main function, as well as functions for specification, relative measurement, mathematical functions and direct current measurement using a clamp make these multimeters genuine measurement experts.

High-performance graphical multimeters...
Easy-to-read 320 x 240-pixel colour matrice screen with black background
• Multi-parameter graphical display of the trends on a summary screen
• Display of the waveform at 50 / 60 and 600 Hz
• Trace, cursors and zoom on the recordings
• Internal recording of 10 sequences

Dynamic recorders...
• Up to 10,000 measurements stored in memory
• Simplified parameterization of the number of measurements, the interval, the duration and the storage capacity
• Internal storage of 10 measurement sequences
• Interactive zoom function on the recordings
• A simple monitoring mode displaying the time/date-stamped MIN/MAX/PEAK+/PEAK- and AVG values

... And much more!
• Contextual reminder of connections
• Traditional USB communication with Bluetooth available as an option
• IP67 protection, withstands water projections and dust, ideal for outdoor conditions
• Commercially-available Ni-MH AA rechargeable battery, the best quality/price trade-off
• Battery life of up to 100 hrs on battery with management of battery level
• No time wasted: the instrument operates while charging

To see the Quick Start Guides available in other languages

To see the User's Manuals available in other languages

References

Designation

Price

Reference

Quantity

Actions

CA 5292 Multimètre graphique TRMS 100kps

Accessories

P01196802

Quotation

Magnetized voltage probes Diam. 6.6-CF4

P01103058Z

Quotation

CMS Clamp Banana Lead

HX0064

Quotation

Banana-PT100 Adapter

HX0091

Quotation

K wire TC and safety adapt. for DMM

P01102107Z

Quotation

Bag 120x320x600 with Multifix

P01298076

Quotation

MultiFix adapter for DMM

P01102100Z

Quotation

AmpFlex A110-45

P01120630

Quotation

MiniFlex MA110-170

P01120660

Quotation

MiniFlex MA110-250

P01120661

Quotation

C106 Clamp DV 1000/1

P01120304

Quotation

C107 Clamp CV 1000/1

P01120305

Quotation

MINI 02 Clamp 1000/1

P01105102Z

Quotation

MINI 05 Clamp CV 10-100/10-0.1

P01105105Z

Quotation

MN08 Clamp DA 200/0.2

P01120401

Quotation

MN09 Clamp CA 200/0.2

P01120402

Quotation

MN71 Clamp CV 10/1

P01120420

Quotation

MN73 Clamp CV 2-200/2

P01120421

Quotation

MN89 Miniclamp CV 200/20

P01120415

Quotation

MTX328x battery charger

HX0053

Quotation

USB Optical cable

HX0056-Z

Quotation

Bluetooth USB dongle

P01102112

Quotation

HRC fuse 11A 10x38 1000V x5

P01297092

Quotation

V1.2 Data Acquisition Software for ASYC II Mult

SX-DMM2

Quotation

HX0051B Batt Kit for Graphic MTX329X DMM

HX0051B

Quotation

CHARGER USB-TYPE R

P01102186

Quotation

AC-DC CURRENT CLAMP PAC16

P01120116

Quotation

AC-DC CURRENT CLAMP PAC26

P01120126

Quotation

PT1000 Temp probe

HA1263

Quotation
