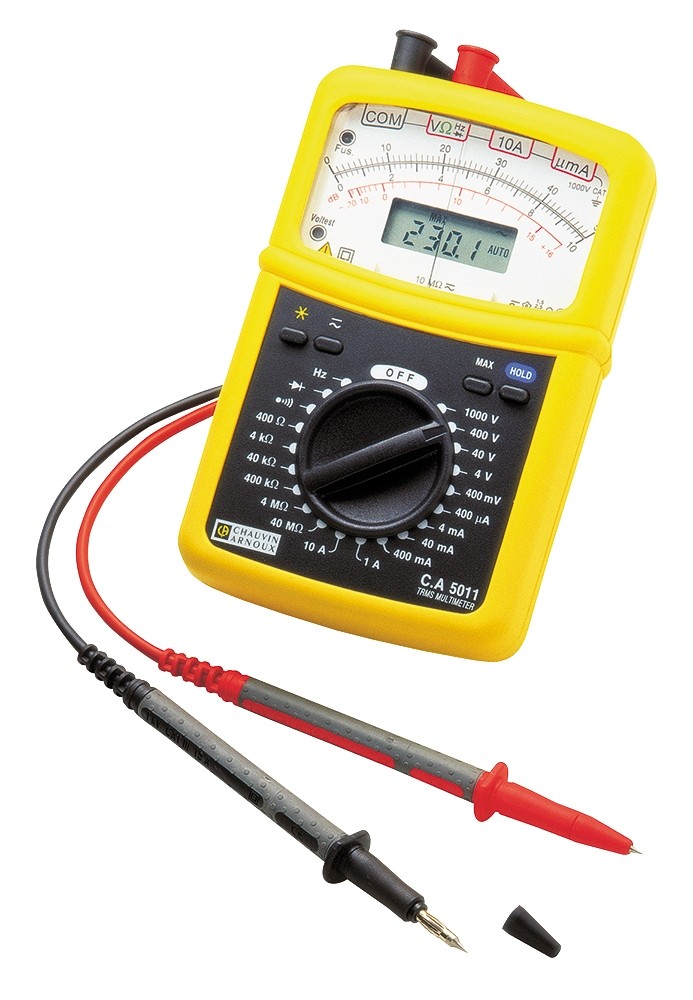

The C.A 5011TRMS multimeter gives the RMS value whatever the type of signal (sinusoidal or distorted).
This makes it ideal for all types of installations, even those involving "non-linear" loads.
Specifications:
- Automatic recognition of AC/DC
- AC/DC voltage: 400 mV to 600 V (5 ranges)
- Operating frequency: 20Hz to 10 kHz
- Typical accuracy: 0.5% -Impedance: 10 MΩ
- AC/DC current: 400 µA to 10 A (6 ranges)
- Resistance: 400 Ω to 40M Ω(6 ranges)
- Continuity test: (R< 400 Ω) and diode test
- Frequency: 4 kHz to 400 kHz(3 ranges)
- Reading of dB scale from -20 to16 dB
- Fuse status LED
- "Voltest"LED if a voltage is present in ohmmeter and continuity modes
- Max and Hold functions
- Can be used as a zero galvanometer
- Backlighting
- Dimensions: 160 x 105 x 56 mm
- Weight: 500g
- Use on any installation rated lower than or equal to CAT III 600 V as per IEC/EN 61010-1 Edition 2
