C.A 5001

  • Analogique
  • GARANTIE_3ANS
Description

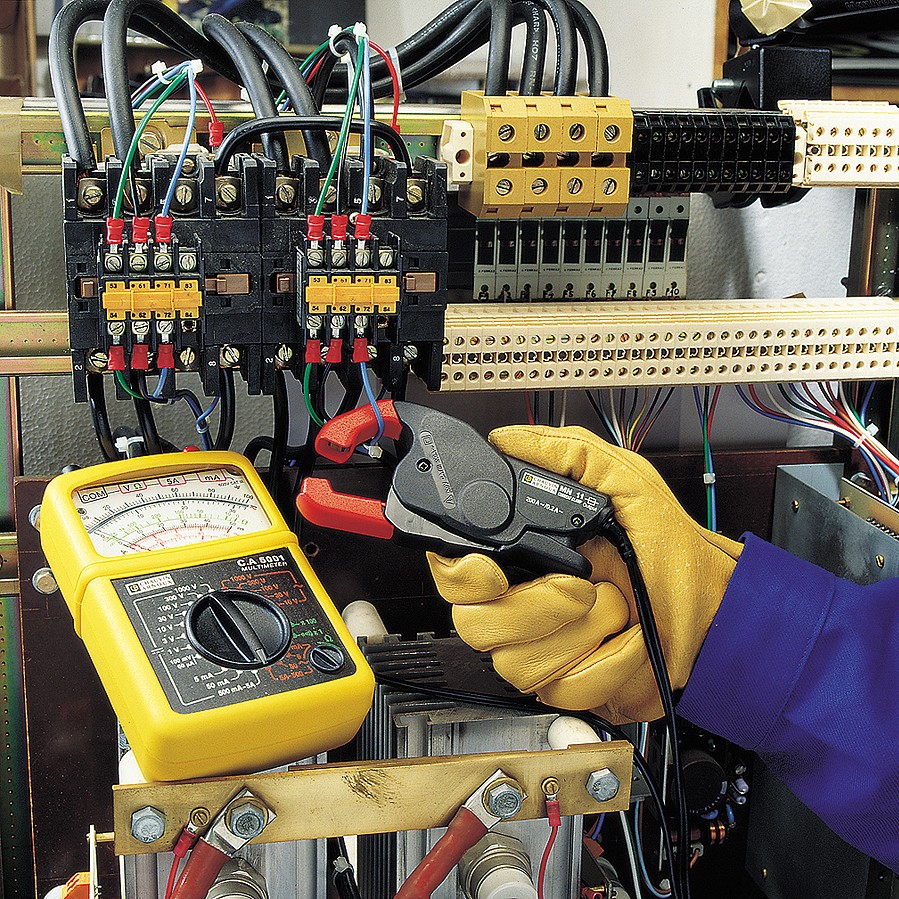

The C.A 5001 is a very competitively-priced analogue multimeter designedto meet all the needs of electricians.

Specifications:

  • DC voltage: 100 mV to 600 V (8 ranges)
  • Accuracy: 1.5% except with 100 mV range (2.5%)
  • AC voltage: 10 V to 600 V (5 ranges)
    Bandwidth: [20Hz-100kHz] on 10 V range,  [20Hz-1kHz] on 300 V and 1,000 V ranges
    Accuracy: 2.5% except with 100 mV range (3%)
  • Impedance: 20 kΩ/V
  • DC current: 50 µA to 5 A (5 ranges)
  • AC current: 5 mA to 5 A (4 ranges)
    Bandwidth: [40 Hz-5 kHz]
    Accuracy: 2.5% except with 5 A range(5%)
  • Resistance: 10 kΩ and 1 MΩ
  • Audible continuity test: R < 50 Ω
  • dB scale (V AC).
  • Fuse status LED
  • Dimensions: 160 x 105 x 56 mm
  • Weight: 500 g
  • Use on any installation rated lower than or equal to CAT III 600 V asper IEC/EN 61010-1 Edition 2
Designation
Price
Reference
Quantity
Actions
C.A 5001
Accessories
-
P01196521E
-
C.A 5001 en mallette
Accessories
-
P01196521F
-
